Diagnostic Trouble Code (DTC) Detecting Criteria (H4DO)
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P2119 Throttle Actuator Control Throttle Body Range/Performance
>>
Diagnostic Method
>>
Details of Judgment Value
Details of Judgment Value

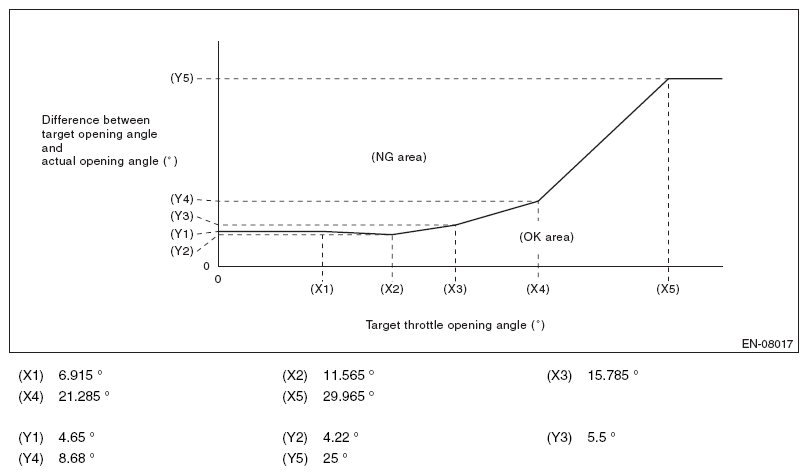

Fig 1: Difference Between Target Opening Angle And Actual Opening Angle Versus Target Opening Angle Graph
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
