Front Exhaust Pipe And Center Exhaust Pipe

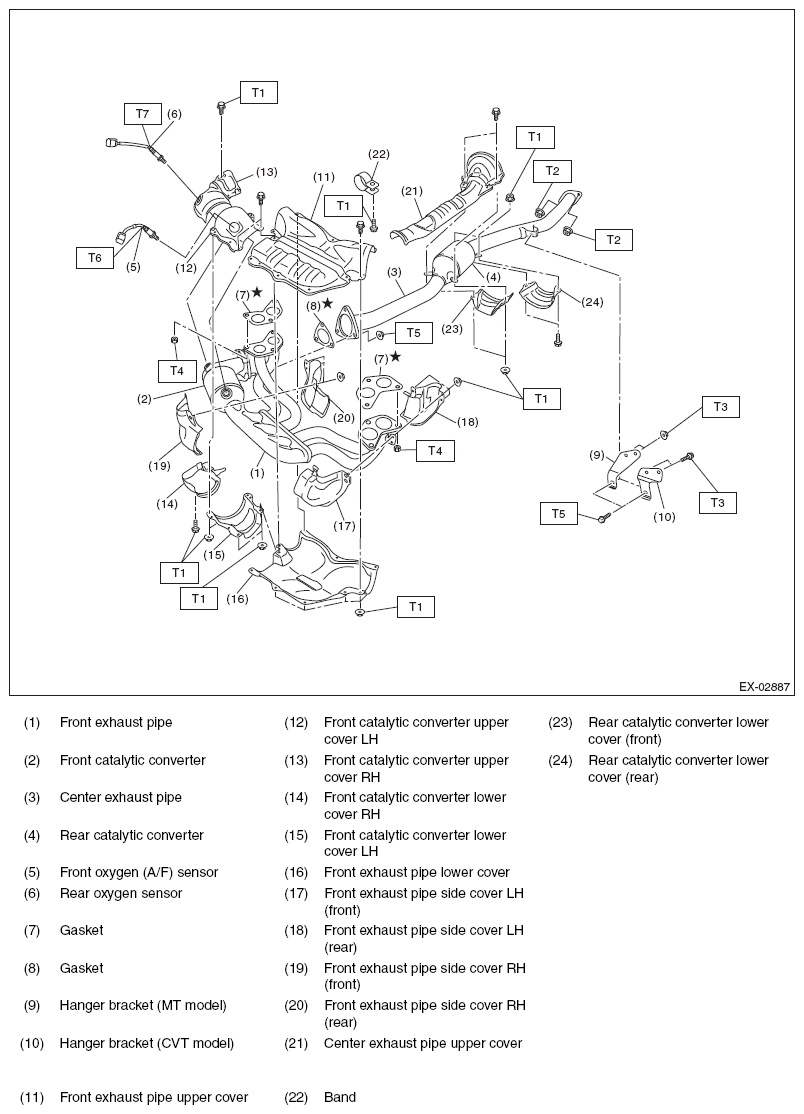

Fig 1: Front Exhaust Pipe And Center Exhaust Pipe Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 18 (1.8, 13.3)

T3: 23 (2.3, 17.0)

T4: 30 (3.1, 22.1)

T5: 35 (3.6, 25.8)

T6: Refer to  INSTALLATION  .

T7: Refer to  INSTALLATION  .
