Components With Torque Specifications: Generator

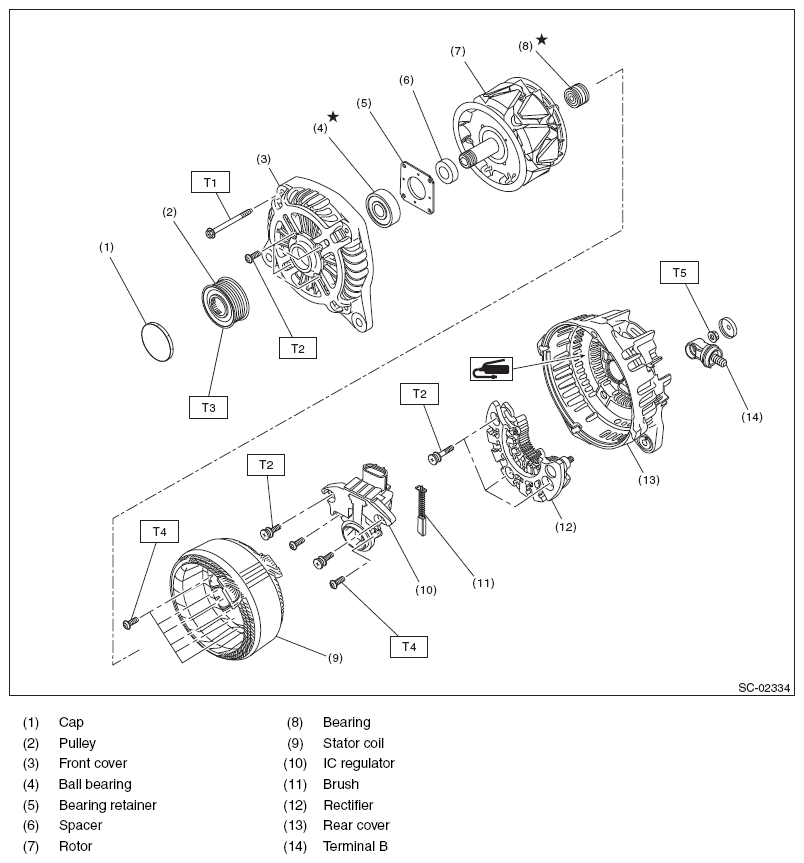

Fig 1: Exploded View Of Generator Components With Tightening Torques

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.4 (0.4, 3.2)

T2: 3.9 (0.4, 2.9)

T3: 80 (8.2, 59.0)

T4: 2 (0.2, 1.5)

T5: 8.9 (0.9, 6.6)
