Control Module I/O Signal: Wiring Diagram

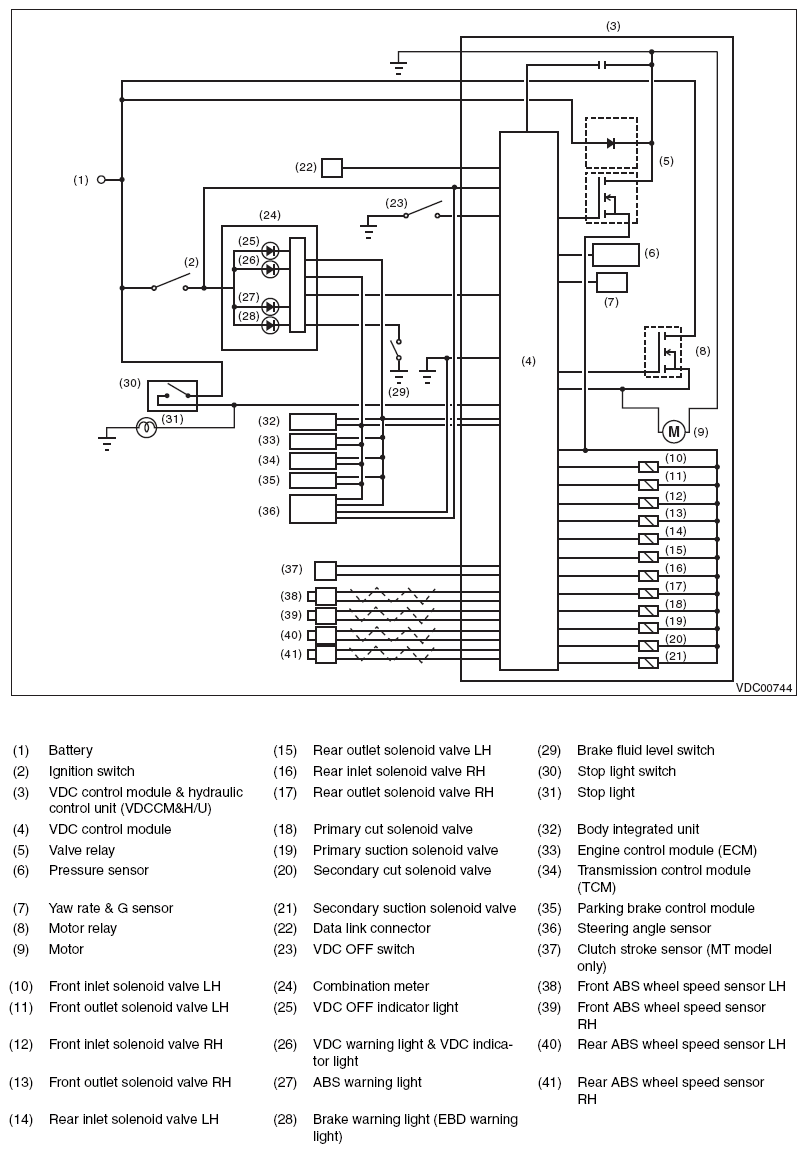

Fig 1: Vehicle Dynamics Control - Wiring Diagram

G08583475

Courtesy of SUBARU OF AMERICA, INC.
