Home >> Subaru >> 2013 >> Outback Base, Standard Trans >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Seat System - Seats >> Power Seat System >> Removal >> Power Seat Control Module (Seat With Memory Function)

Power Seat Control Module (Seat With Memory Function)

  1. Raise the seat cushion by operating the switch.
  2. Remove the front seat from the vehicle.
  3. Remove the power seat control module.
    1. Release the hooks on seat front and turn over the cushion cover.
    2. Remove the nuts, and remove the power seat control module.

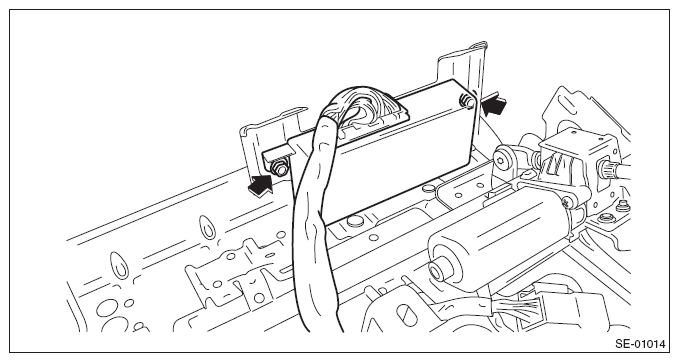

      Fig 1: Locating Power Seat Control Module Nuts
      G08584891
