DTC B278D Id Code Box Recognition Judgment Abnormal: Wiring Diagram

Push button start system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

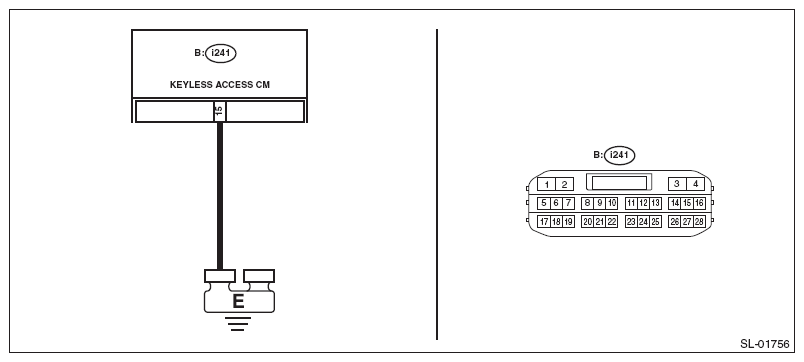

Fig 1: Push Button Start System - Wiring Diagram (ID Code Box Recognition Judgment Abnormal)

Courtesy of SUBARU OF AMERICA, INC.
