General Tool

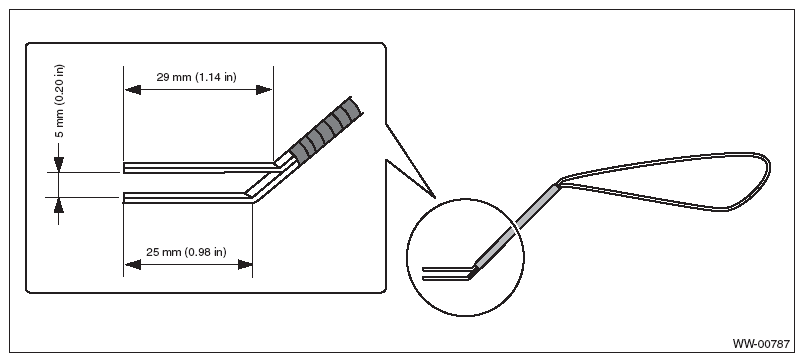

Fig 1: Identifying Front Washer Nozzle Adjustment Tool Dimension

Courtesy of SUBARU OF AMERICA, INC.

Materials

• Vertebra of wiper blade which is to be discarded
• Vinyl tape

Steps of making a front washer nozzle adjustment tool

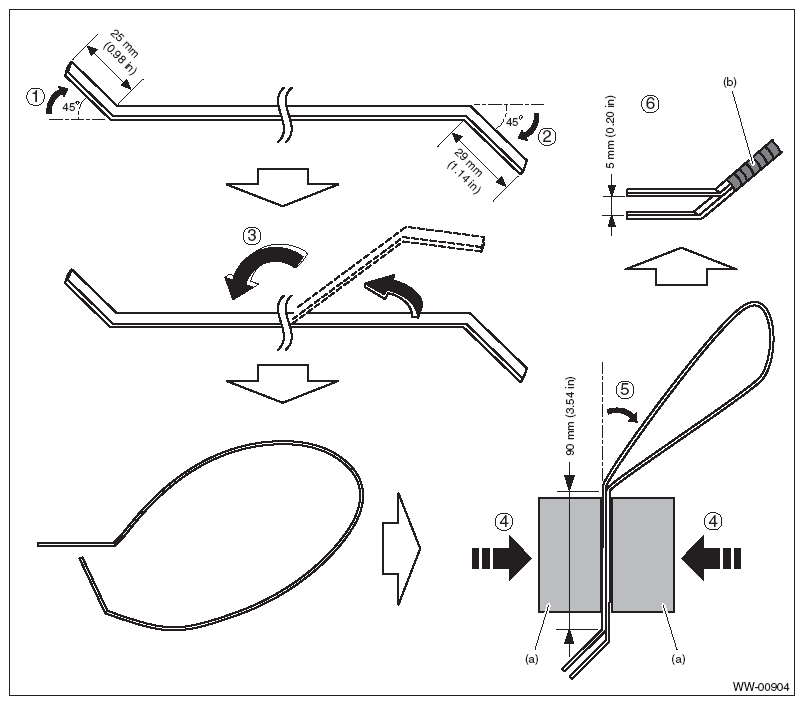

Fig 2: Front Washer Nozzle Adjustment Tool Steps Chart

Courtesy of SUBARU OF AMERICA, INC.

1. Bend the vertebra at the position 25 mm (0.98 in) away from its end by 45°.
2. Bend the vertebra at the position 29 mm (1.14 in) away from the other end by 45°.
3. Double up the vertebra so that the longer end (29 mm (1.14 in)) comes upward.
4. Secure the vertebra with a vise (a) so that the tip clearance becomes 5 mm (0.20 in).
5. Bend the vertebra at the position approximately 90 mm (3.54 in) away from the bending point for the longer end.
6. Check that the tip clearance is 5 mm (0.20 in), and secure the vertebra with vinyl tape (b).
