Front Wiper

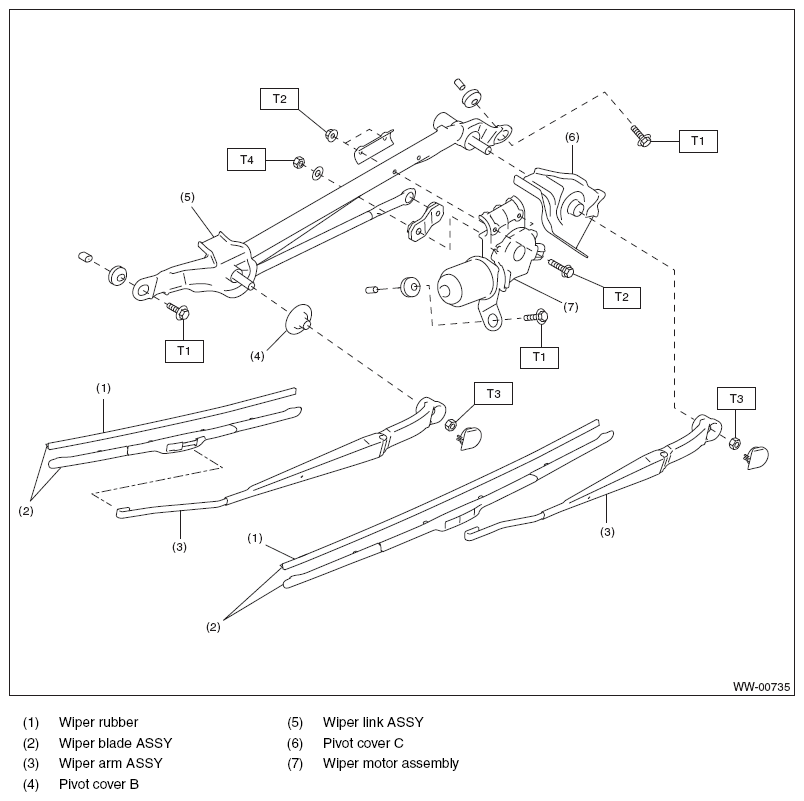

Fig 1: Front Wiper Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.4)

T2: 7.5 (0.76, 5.5)

T3: 22 (2.24, 16.2)

T4: 32.1 (3.27, 23.7)
