Rear Gate Lock And Trunk Lid Lock

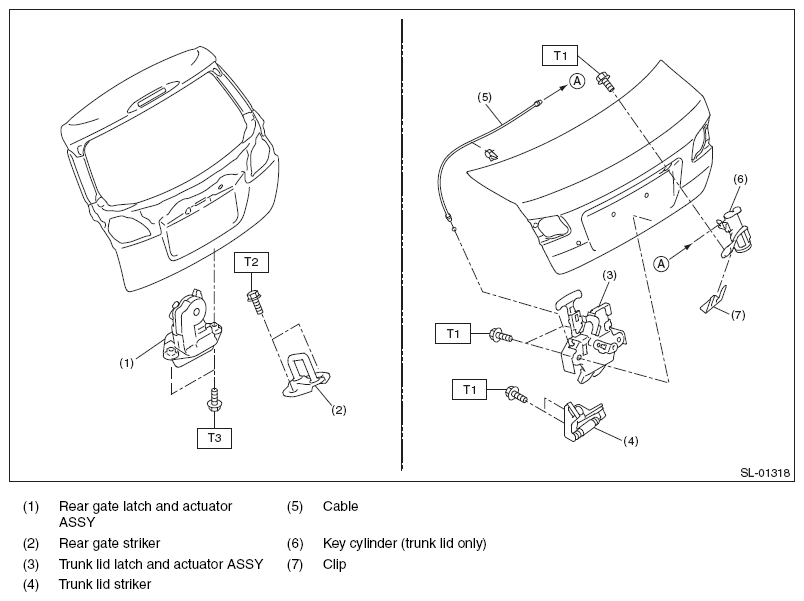

Fig 1: Rear Gate Lock And Trunk Lid Lock Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 25 (2.55, 18.4)

T3: 28 (2.86, 20.7)
