Door Lock Assembly

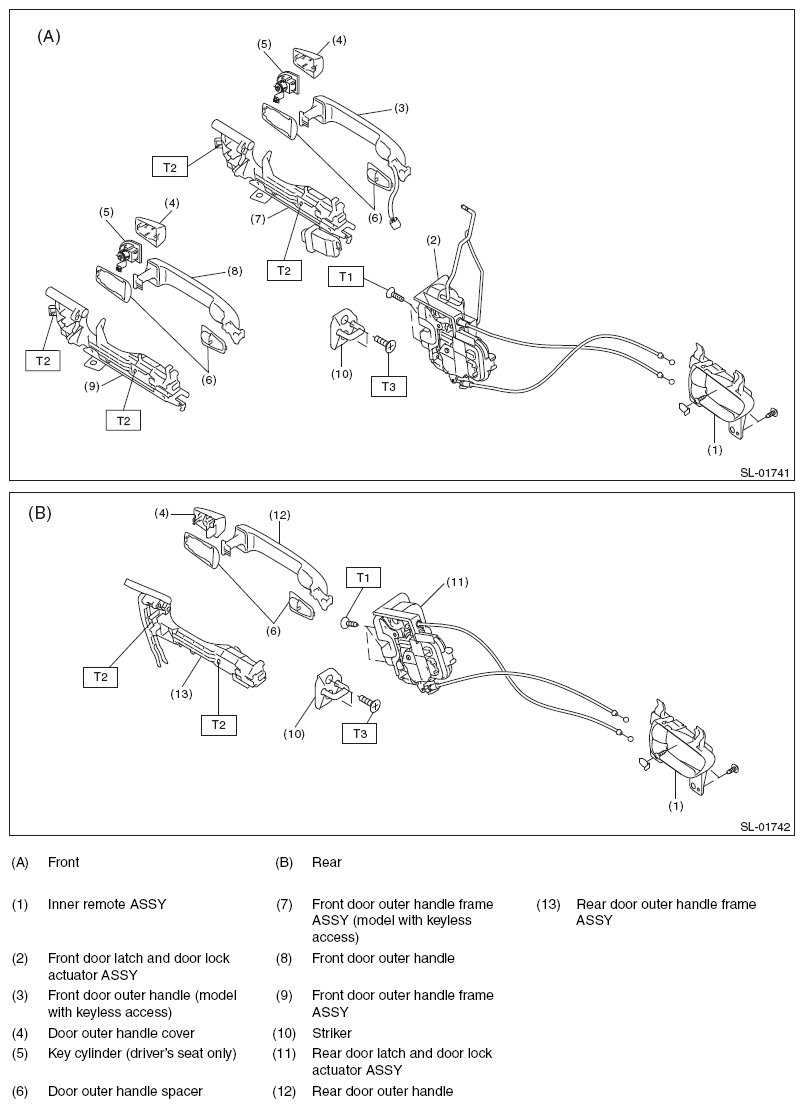

Fig 1: Door Lock Assembly Replacement Components With Torque Specifications
G08584913Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.5 (0.66, 4.8)

T2: 7.5 (0.76, 5.5)

T3: 18 (1.84, 13.3)
