Master Cylinder

WARNING: This page is about a different variant/trim than selected.

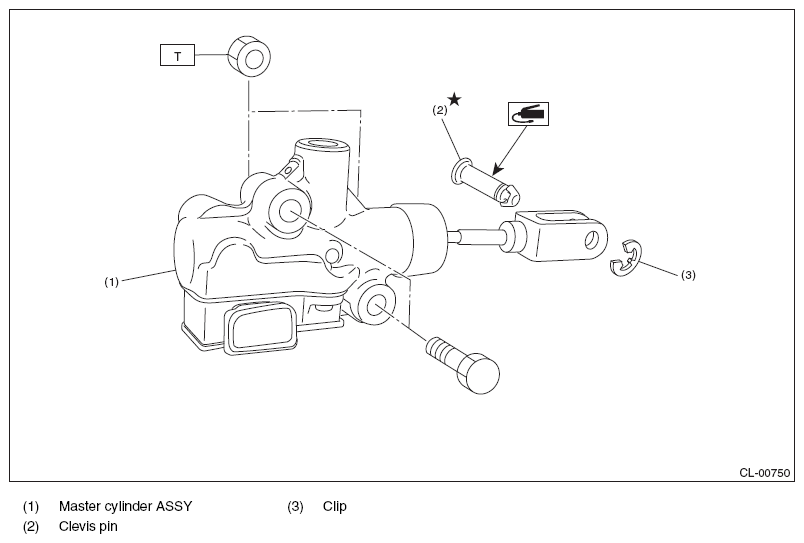

Fig 1: Master Cylinder Related Replacement Components With Torque Specifications
G08582175Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
