Section 16 (Automatic Transmission - Diagnostics): Electrical Component Location: Location: Sensor

WARNING: This page is about a different variant/trim than selected.

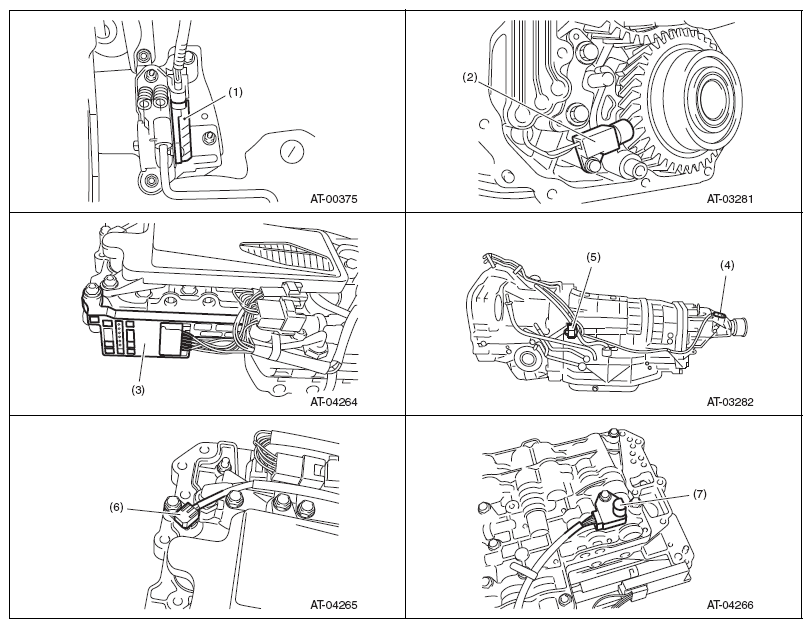

Fig 1: Identifying Sensor Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

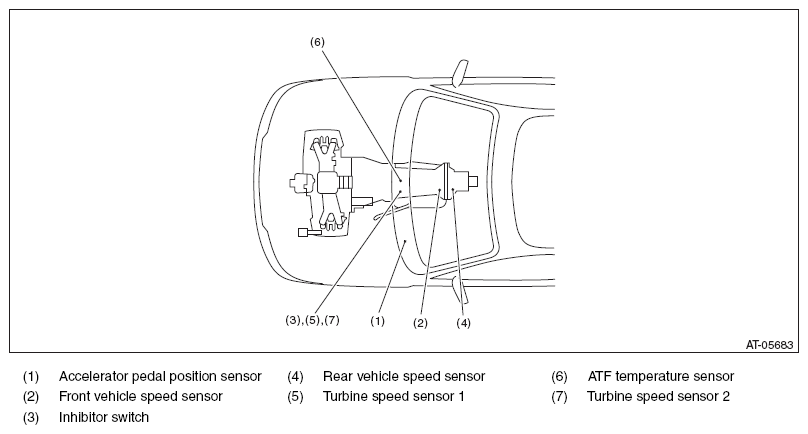

Fig 2: Identifying Sensor Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
