IG Relay1 (Push Button Start): Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Refer to REMOVAL .
  3. Remove the relay & fuse box.
    1. Disconnect connectors.
    2. Remove the bolts and remove the relay & fuse box.

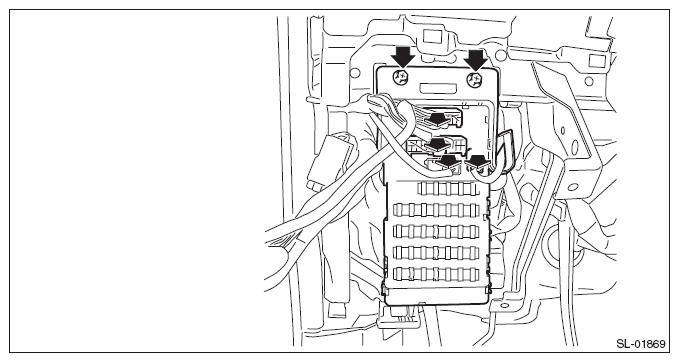

      Fig 1: Disconnecting Relay & Fuse Box Connectors
      G08585033Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the connector holder.
    1. Disconnect the connector.
    2. Remove the bolt and remove the connector holder.

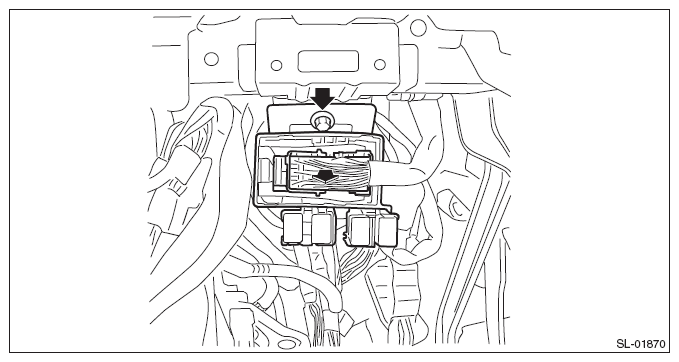

      Fig 2: Disconnecting Connector
      G08585034Courtesy of SUBARU OF AMERICA, INC.
  5. Remove IG relay 1 (push button start) (A) from the relay holder.

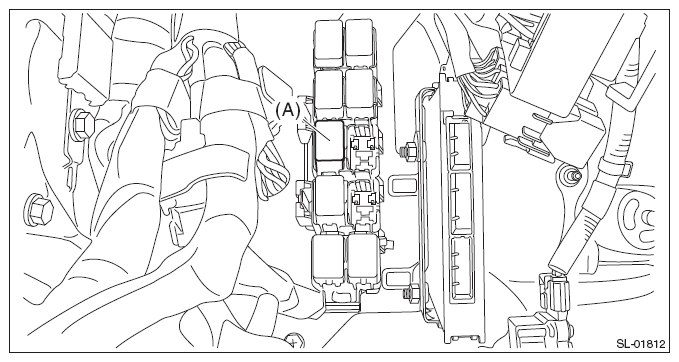

    Fig 3: Identifying IG Relay 1
    G08585049Courtesy of SUBARU OF AMERICA, INC.
