Forward Clutch Assembly

Install the forward clutch piston to forward clutch drum.
NOTE:
- Apply CVTF to the seal of forward clutch piston.
- Insert it all the way to the end.

  Fig 1: Installing Forward Clutch Piston To Forward Clutch Drum
  Courtesy of SUBARU OF AMERICA, INC.
Install the return spring.

Fig 2: Removing/Installing Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the chamber COMPL.
NOTE: Apply CVTF to the sealing area of chamber COMPL.

Fig 3: Identifying Chamber COMPL And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the ST to install the snap ring.
ST1 18762AA010 COMPRESSOR SPECIAL TOOL

ST2 398673600 COMPRESSOR

Fig 4: Removing/Installing Snap Ring Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
Check the operation of forward clutch piston by blowing compressed air intermittently from forward clutch carrier hole.

Fig 5: Checking Forward Clutch Piston Operation By Blowing Compressed Air From Forward Clutch Carrier Hole
Courtesy of SUBARU OF AMERICA, INC.
Place the driven plate, drive plate and retaining plate neatly in this order on surface table.
Set the dial gauge to retaining plate, and read its scale.
NOTE: The value, which is read in the gauge at this time, is zero point.
Scale and record the weight "Z" of a flat board which will be put on retaining plate.
NOTE:
- The value, which is read in the gauge at this time, is zero point.
- Use a flat board weighing less than 52 N (5.3 kgf, 11.7 lb).
Put the flat board on retaining plate.

Fig 6: Measuring Flat Board Weight On Retaining Plate Using Dial Gauge
Courtesy of SUBARU OF AMERICA, INC.
Using the following formula, read the push/pull gauge and calculate "N".
N = 52 N (5.3 kgf, 11.7 lb) - Z

52 N (5.3 kgf, 11.7 lb) : Load applied to clutch plate

Z: Flat board weight

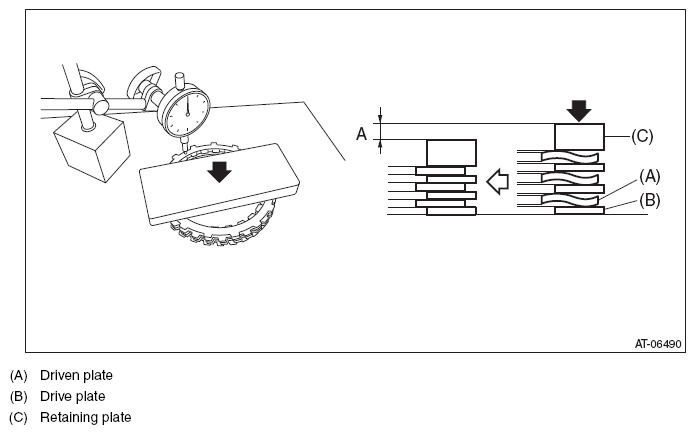

Press the center of retaining plate by applying a force of "N" using push/pull gauge, and then measure and record the compression amount "A".
NOTE: Measure at four points with a 90° interval and calculate the average.

Fig 7: Measuring Flat Board Weight On Retaining Plate Using Dial Gauge
Courtesy of SUBARU OF AMERICA, INC.
Install the dish plate, drive plate, driven plate, retaining plate and snap ring to the forward clutch carrier.
NOTE: Install the dish plate in the correct direction.

Fig 8: Identifying Dish Plate Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Measure and record the clearance "B" between the retaining plate and snap ring.

Fig 9: Measuring Clearance "B" Between Retaining Plate And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
