5 Door Model/XV Model

Disconnect the ground cable from battery.
Lift up the vehicle, and then remove the rear wheels.
Remove the rear ABS wheel speed sensor.
CAUTION:
- Be careful not to damage the sensor.
- Do not apply excessive force to the sensor harness.
- Leave the sensor harness clamp on the vehicle side.
1. Tilt the backrest assembly of the rear seat forward.
2. Remove the clips located at the bottom of the cover COMPL - rear backrest LH and RH of the rear seat back.

  Fig 1: Locating Cover COMPL Clips
  Courtesy of SUBARU OF AMERICA, INC.

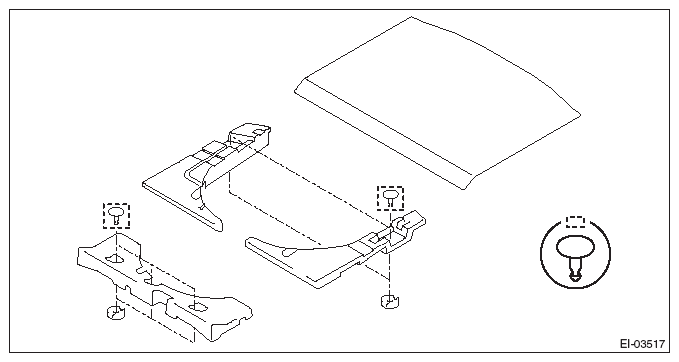

3. Remove the mat - rear floor CTR and the spacer - rear floor side.

  Fig 2: Identifying Rear Floor CTR Mat, Spacer And Clips
  Courtesy of SUBARU OF AMERICA, INC.

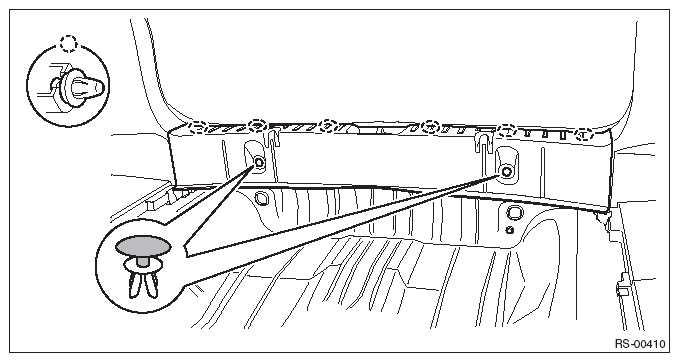

4. Remove the clips, and remove the trim panel - rear skirt.

  Fig 3: Identifying Trim Panel Clips
  Courtesy of SUBARU OF AMERICA, INC.

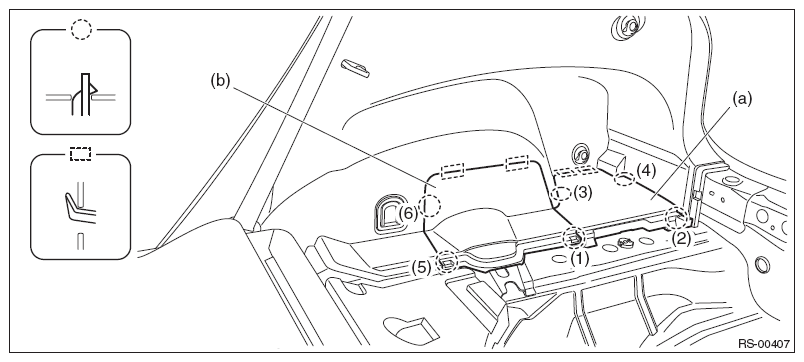

5. Remove the lid upper rear (a) and the cap - rear strut (b) in the order from (1) to (6).

  Fig 4: Identifying Lid Upper Rear And Rear Strut Cap Removing Sequence
  Courtesy of SUBARU OF AMERICA, INC.

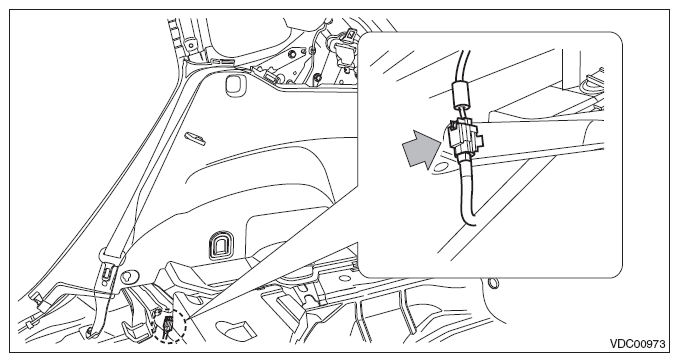

6. Disconnect the connector of the rear ABS wheel speed sensor.

  Fig 5: Locating Rear ABS Wheel Speed Sensor Connector
  Courtesy of SUBARU OF AMERICA, INC.
7. Remove the grommet from the rear wheel housing, and pull out the connector of the rear ABS wheel speed sensor.
8. Remove the harness clip and bolt, and remove the rear ABS wheel speed sensor.
- Except for XV model

  Fig 6: Locating Rear ABS Wheel Speed Sensor Harness Clip And Bolt (Except For XV Model)
  Courtesy of SUBARU OF AMERICA, INC.
- XV model

  Fig 7: Locating Rear ABS Wheel Speed Sensor Harness Clip And Bolt (XV Model)
  Courtesy of SUBARU OF AMERICA, INC.
