Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting/Connecting Battery Ground Cable
    G06336085Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.

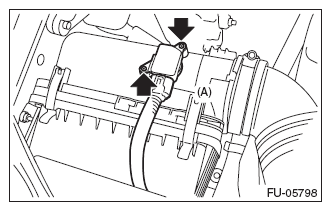

    Fig 2: Locating Mass Air Flow And Intake Air Temperature Sensor Connectors
    G08538767Courtesy of SUBARU OF AMERICA, INC.
