Oil Charge Pipe: Installation

Install the oil charge pipe with O-ring.
NOTE:
- Use new gaskets and O-rings.
- Apply ATF to the O-ring.
Tightening torque:

38 N.m (3.9 kgf-m, 28.0 ft-lb)

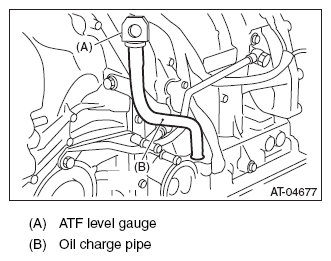

Fig 1: Identifying ATF Level Gauge And Oil Charge Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the starter.
Install the air intake boot assembly. (non-turbo model) < Refer to INSTALLATION , Air Intake Boot. >
Install the intercooler. (turbo model) < Refer to INSTALLATION , Intercooler. >
