Pressure "Increase" Control With Brake Pedal Depressed

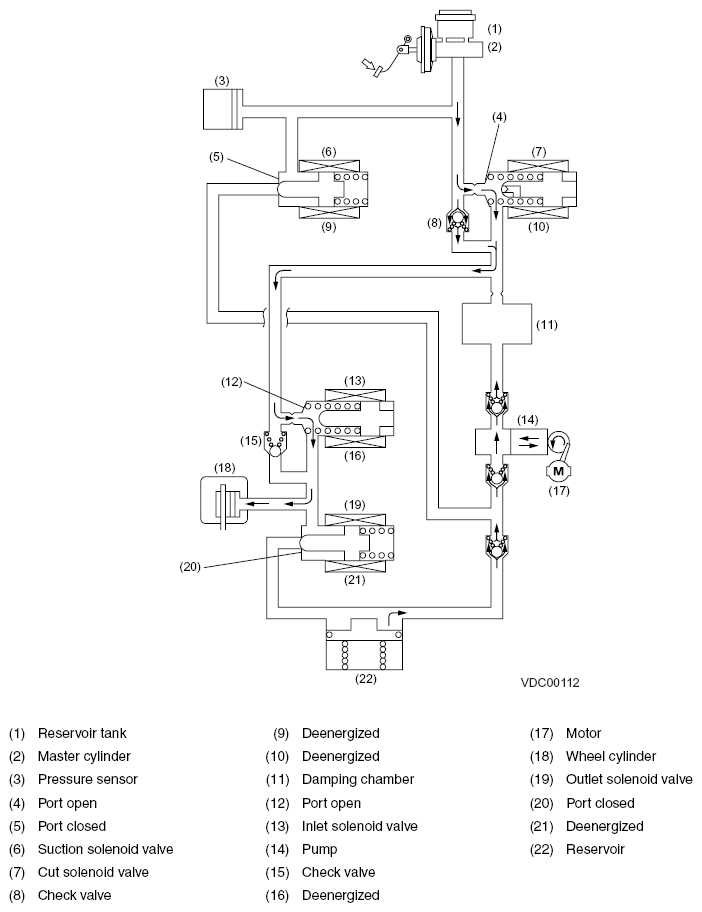

No solenoid valves are energized. This means that the ports of the inlet solenoid valve and cut solenoid valve are open, while those of the outlet solenoid valve and suction solenoid valve are closed.
In this state, the fluid pressure generated by the master cylinder is transmitted to the wheel cylinder through the open ports of the cut solenoid valve and inlet solenoid valve, applying the brake with an increased force. The pump is always operated whenever commanded by the VDCCM.
NOTE:
For simplicity of explanation, operation of the hydraulic unit is represented by operation of a single wheel circuit.
