Drive Pinion Assembly

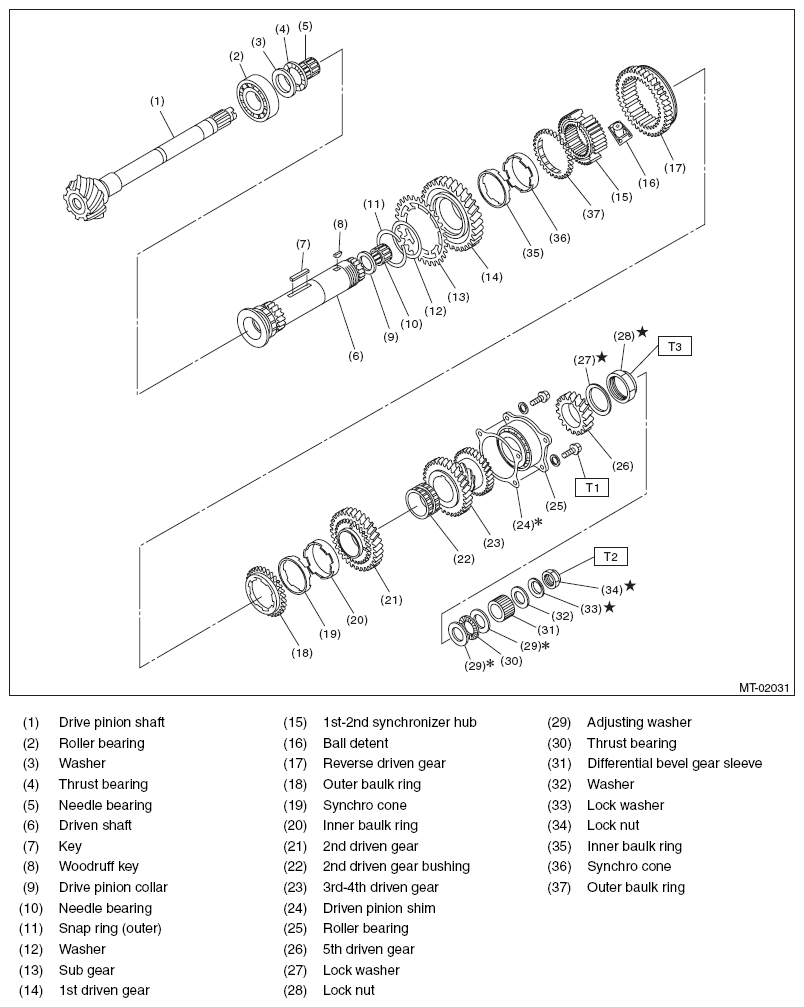

Fig 1: Exploded View Of Drive Pinion Assembly Components With Torque Specifications
G08571519Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 120 (12.2, 88.5)

T3: 260 (26.5, 191.8)
