Inspection steps
CAUTION:
Always perform a steering zero point calibration after replacing the power steering computer assembly. (Refer to WORK SUPPORT
)
NOTE:
Before performing troubleshooting, check the fuse for this circuit.
- Check the connection of each part
- Lightly jiggle the power steering computer assembly connector and wiring harness in the up/down/left/right directions, and check the state of the P/S warning light.
Criteria: No variation in the P/S warning light illumination state.
NOTE: If operating properly, the P/S warning light comes on when the ignition is turned to IG ON and goes out after the engine has started.NG: Repair or replacement of wiring harness or connector
OK: Go to Next Step
- Lightly jiggle the power steering computer assembly connector and wiring harness in the up/down/left/right directions, and check the state of the P/S warning light.
- Check the diagnosis codes (CAN communication system)
- Use the SSM3 to check the CAN communication system. (Refer to
HOW TO TROUBLESHOOT
)
Criteria: No error code.
NG: To CAN communication system (How to troubleshoot) (Refer to HOW TO TROUBLESHOOT )
OK: Go to Next Step
- Use the SSM3 to check the CAN communication system. (Refer to
HOW TO TROUBLESHOOT
)
- Read the SSM3 data (PIG power supply)
- Use the SSM3 to check the [PIG Power Supply]. (Refer to [CURRENT DATA DISPLAY & SAVE]
)SSM3 SCREEN: [POWER STEERING] →[CURRENT DATA DISPLAY & SAVE]
Item name Description/display range Normal value Remarks PIG power supply Indicates the power supply voltage to drive the motor.
Display range: 0.0000 - 20.1531 V9 - 16 V: Always - Voltage: 9 - 16 V (always)
NG: Go to Step 6.
- Use the SSM3 to check the [PIG Power Supply]. (Refer to [CURRENT DATA DISPLAY & SAVE]
)
- Read the SSM3 data (IG power supply voltage)
- Use the SSM3 to check the [IG power supply voltage]. (Refer to [CURRENT DATA DISPLAY & SAVE]
)SSM3 SCREEN: [POWER STEERING] →[CURRENT DATA DISPLAY & SAVE]
Item name Description/display range Normal value Remark s [ABS_CM Power Voltage] Indicates the ECM power supply state.
Display range: 0.0000 - 20.1531 V9 - 16 V: IG ON - Voltage: 9 - 16 V (When IG ON)
NG: Go to Step 6
OK: Replace the power steering computer assembly (Refer to REMOVAL )
- Use the SSM3 to check the [IG power supply voltage]. (Refer to [CURRENT DATA DISPLAY & SAVE]
)
- Inspect the wiring harness and connector (PIG power supply and ground)
- Disconnect the power steering computer assembly connector A14.
- Measure the voltage and resistance of the connectors on the vehicle side.VOLTAGE

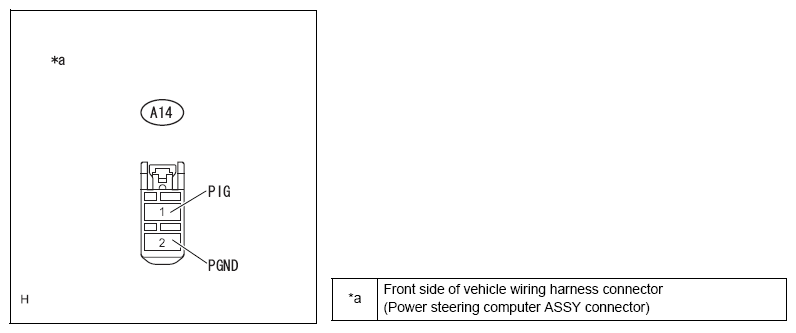

Inspection terminals Inspection conditions Standard value A14-1(PIG) - Chassis ground Always 9 - 16V RESISTANCEInspection terminals Inspection conditions Standard value A14-2 (PGND) - Chassis ground Always Less than 1 Ω Captions in illustration
Courtesy of SUBARU OF AMERICA, INC.
NG: Repair or replacement of wiring harness or connector
OK: Replace the power steering computer assembly (Refer to REMOVAL )
- Inspect the wiring harness and connector (IG power supply and ground)
- Disconnect the power steering computer assembly connectors A14 and A15.
- Measure the voltage and resistance of the connectors on the vehicle side.VOLTAGE

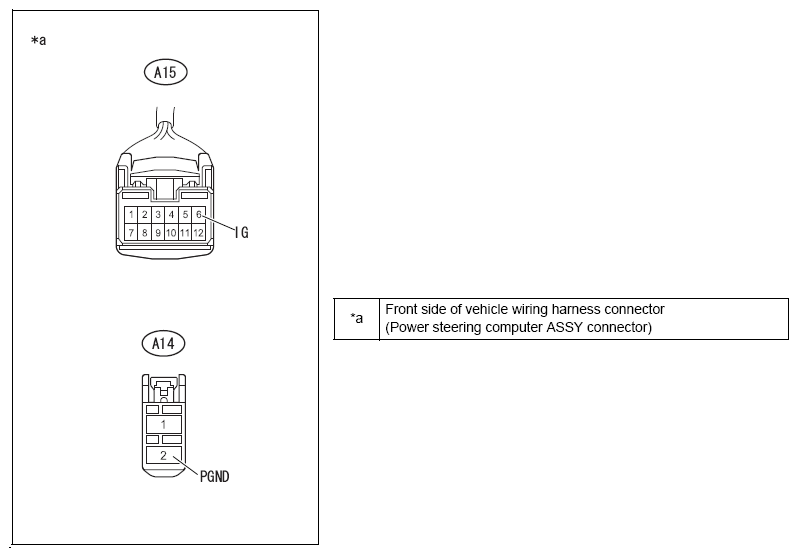

Inspection terminals Inspection conditions Standard value A15-6(IG) - Chassis ground IG ON 9 - 16V RESISTANCEInspection terminals Inspection conditions Standard value A14-2 (PGND) - Chassis ground Always Less than 1 Ω Captions in illustration
Courtesy of SUBARU OF AMERICA, INC.
NG: Repair or replacement of wiring harness or connector
OK: Replace the power steering computer assembly (Refer to REMOVAL )
