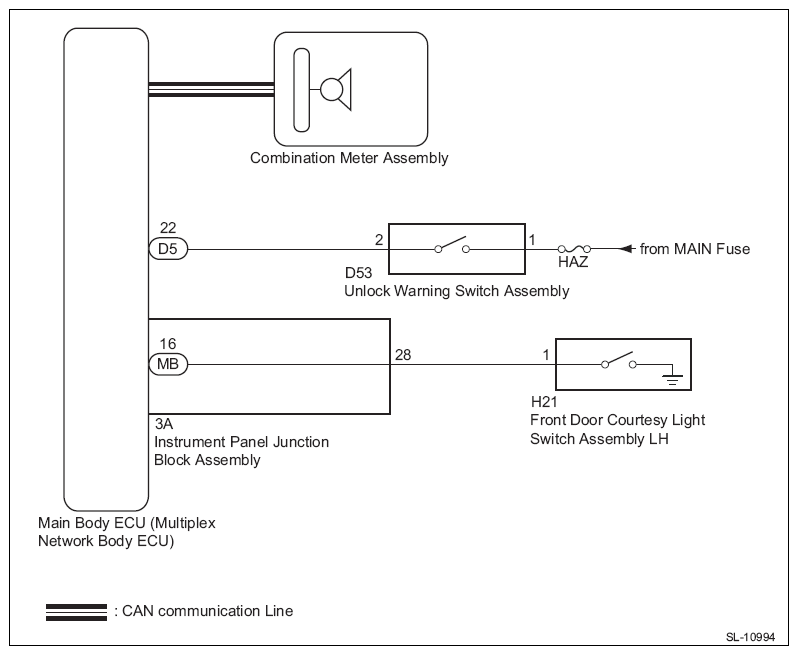

Circuit figure

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
G12589201Courtesy of SUBARU OF AMERICA, INC.
