Section 124 (Emission Control System)
>>
Emission Control System (FA20)
>>

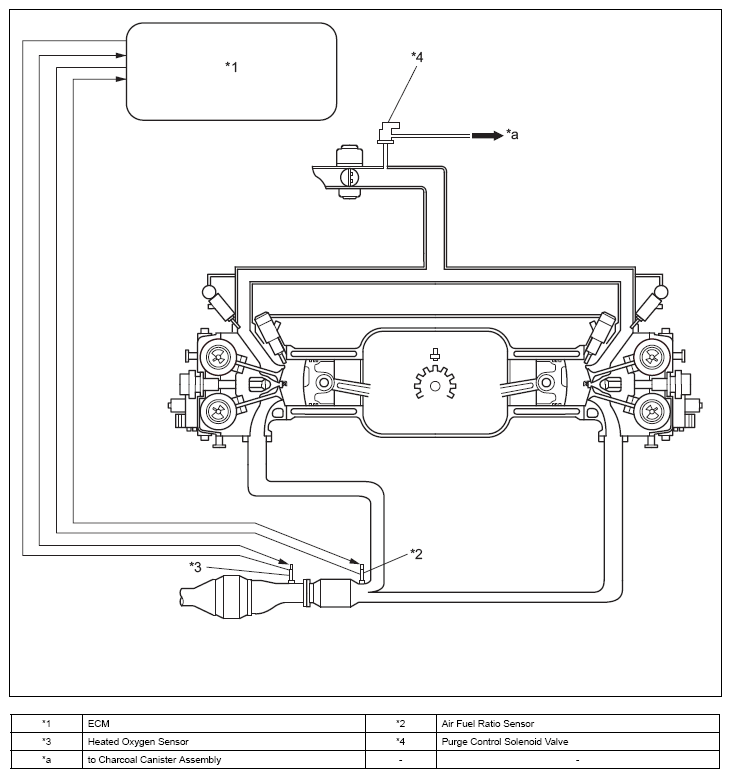

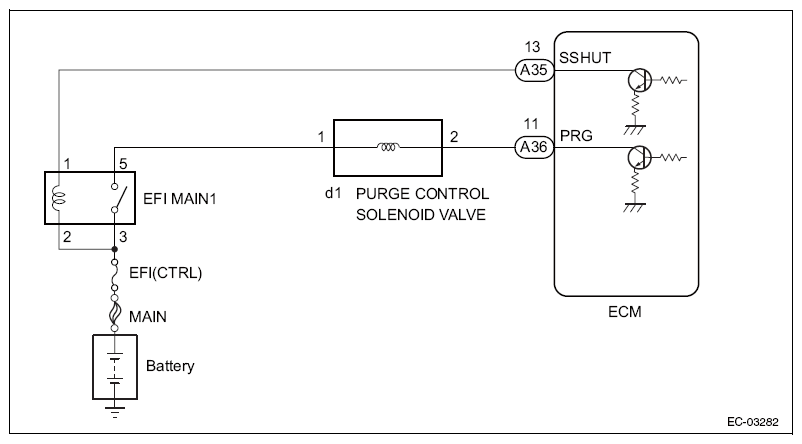

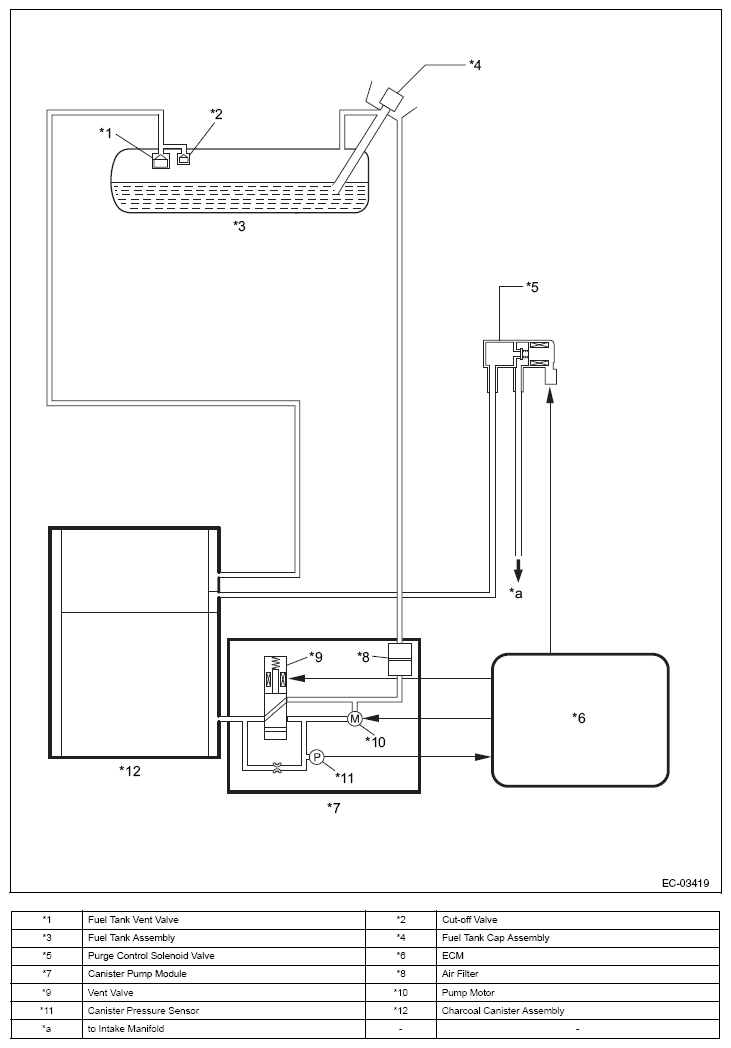

Circuit Figure
Circuit Figure
WARNING:
This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
