Specified oils and amounts

Engine oil

Specified oil

Viscosity grade	Quality grade
0W-20 (synthetic oil)	For API certified: Products with SM "Energy Conserving" or SN "Resource Conserving" logos.
0W-20 (synthetic oil)	For ILSAC certified: Products with GF-4 or GF-5 "Starburst mark" displayed on the container.

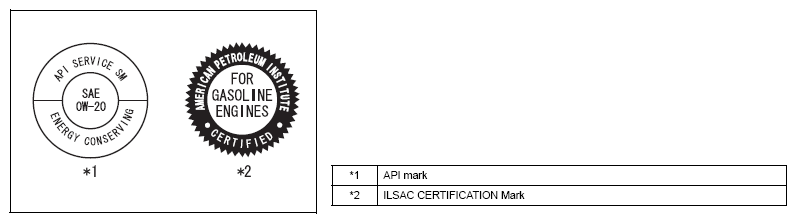

Fig 1: Identifying API Mark And ILSAC Certification Mark

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

Use 0W-20 (synthetic oil).
When replacing the oil, it is acceptable to use a different brand oil but Subaru-specified engine oil should be used.

Amount

Engine type	Only replacing oil Filling amount (L {US qt, Imp qt})	Oil and oil filter Filling amount at oil replacement (L {US qt, Imp qt})
FA20	5.2 {5.5, 4.6}	5.5 {5.8, 4.8}

NOTE: The filling amount at engine oil replacement is the value when oil is drained from the drain plug.

Oils/Coolants other than engine oil

CAUTION:

For AT, using any ATF other than recommended product may cause malfunctions. Be sure to use the recommended product.
For transmission gear oil and rear differential gear oil, use gear oil specified in the table below. When using the substitute product, the function and performance may be inferior.

Item [Type]	Amount (L {US qt, Imp qt}) (reference value)	Recommended product	Substitute product
Coolant [FA20]	7.5 {15.9, 6.6} (AT)	SUBARU Super Coolant (Diluted type)	-
Coolant [FA20]	7.2 {15.2, 6.3} (MT)	SUBARU Super Coolant (Diluted type)	-
Automatic transmission fluid [TX6A]	7.5 {15.9, 6.6}	Auto fluid WS	-
Manual transmission oil [TL70]	2.2 {4.7, 1.9}	MG gear oil special II (API GL-3, SAE 75W-90)	GL-3 or later (75W-90)
Rear differential oil	1.1 to 1.2 {2.3 to 2.5, 1.0 to 1.1} (with LSD)	Differential gear oil LX (API GL-5, SAE 75W-85)	GL-5 (75W-85 or 75W-90)
Clutch fluid	-	FMVSS No. 116 DOT3 or DOT4	-
Brake fluid	-	FMVSS No. 116 DOT3 or DOT4	-
A/C compressor oil	-	ND-OIL8	-
