Inspection flow by DTC system

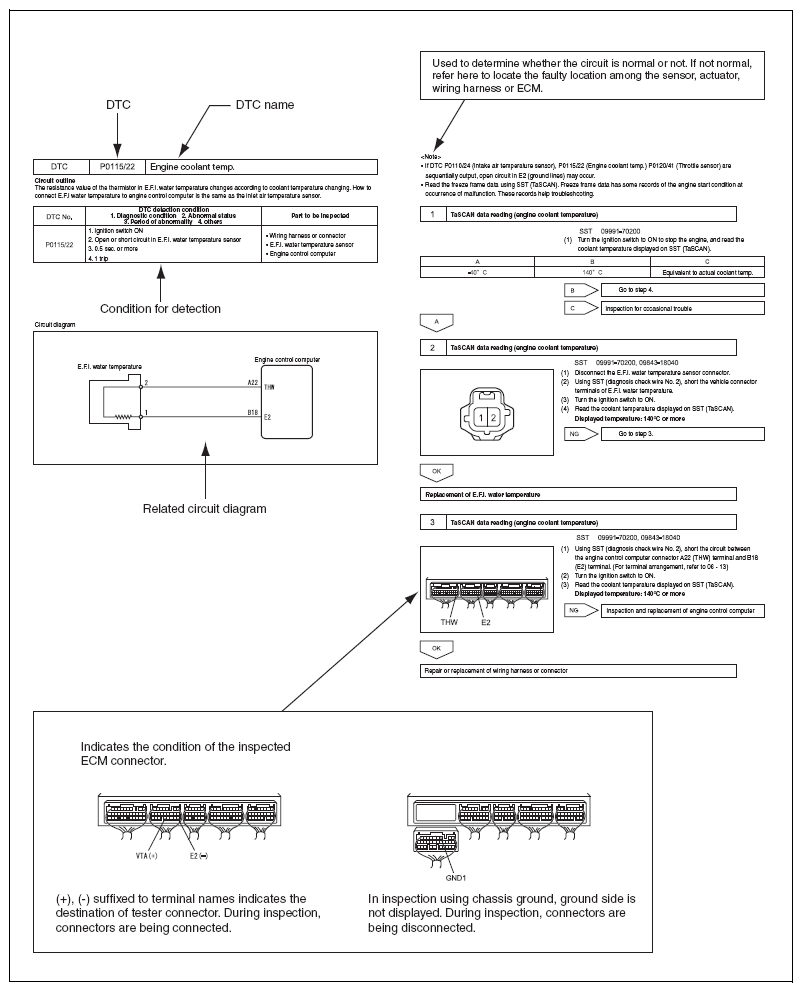

How to read and use each page is described below.
- Troubleshooting is shown in order of DTC, and separated by systems and symptoms in order to make it easier to diagnose malfunctions and investigate the cause.
- Troubleshooting procedures are described in sections with the following headings: "DTC", "Circuit description", "Detecting conditions", "Circuit figure", and "Inspection steps".
