Airbag Connector

WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. How to disconnect the occupant detection system between airbag rear harness and seat harness
    CAUTION: When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.

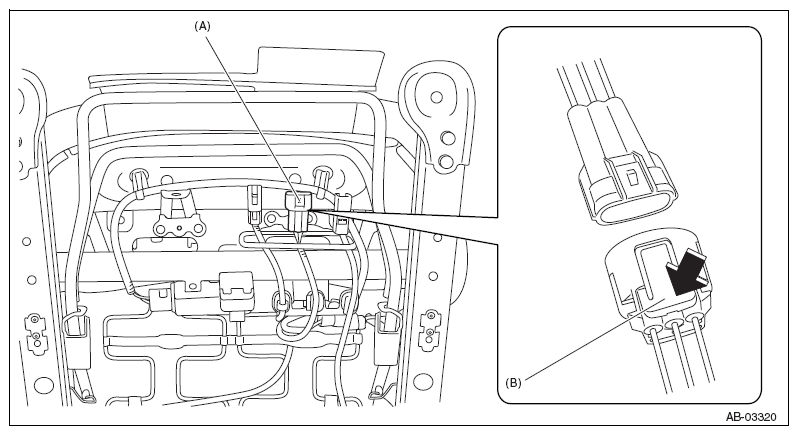

    1. Disconnect the connector by pressing the lock arm (B) of the connector connected to connector (A) under the passenger's seat.
    G08557661Courtesy of SUBARU OF AMERICA, INC.
  2. How to connect the occupant detection system between airbag rear harness and seat harness
    CAUTION: Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.
    1. Holding the connector, push it in securely until a clicking sound is heard.
  3. Airbag control module
    1. Refer to "SRS AIRBAG SYSTEM ".
  4. Buckle switch RH
    1. Refer to "SRS AIRBAG SYSTEM ".
