Inspection steps

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The entry & start system has functions that use the CAN communication. Before performing troubleshooting, perform the inspection in "How to troubleshoot", and check that there are no communication problems. (Refer to HOW TO PROCEED WITH TROUBLESHOOTING )
  • Before replacing the collation ECM (smart key ECM ASSY), refer to "entry & start system (entry function)". (Refer to ENTRY & START SYSTEM (ENTRY FUNCTION) )
  • After repair, perform the [DTC output confirmation operation], and check that the DTC is not output again.
  • Before performing the following inspection steps, check the fuses related to this system.
  1. Checking the harnesses and connectors (power supply)
    1. Remove the D48 connector of the collation ECM (smart key ECM ASSY).
    2. Measure the voltage according to the following table.
      STANDARD VALUE SPECIFICATION - VOLTAGE

      Inspection terminals Inspection conditions Standard value
      D48-2 (+B) - chassis ground Always 9.5 to 16V

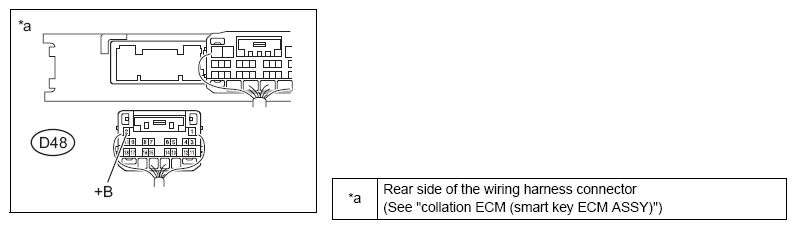

      G12589366Courtesy of SUBARU OF AMERICA, INC.

      OK: Go to next step

      NG: Repair or replacement of the harnesses or connectors of the circuits that connect to the power source

  2. Checking the harnesses and connectors (grounding)
    1. Measure the resistance according to the following table.
      STANDARD VALUE SPECIFICATION - RESISTANCE

      Inspection terminals Inspection conditions Standard value
      D48-11 (GND) - Chassis ground Always 1 Ω or less

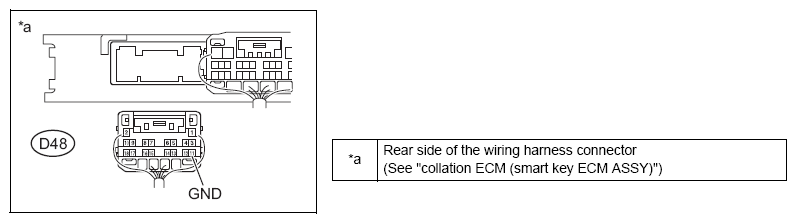

      G12589367Courtesy of SUBARU OF AMERICA, INC.

      OK: Go to next step

      NG: Repair or replacement of the harnesses or connectors

  3. Unit inspection of the collation ECM (smart key ECM ASSY)
    1. Reconnect the D48 connector of the collation ECM (smart key ECM ASSY).

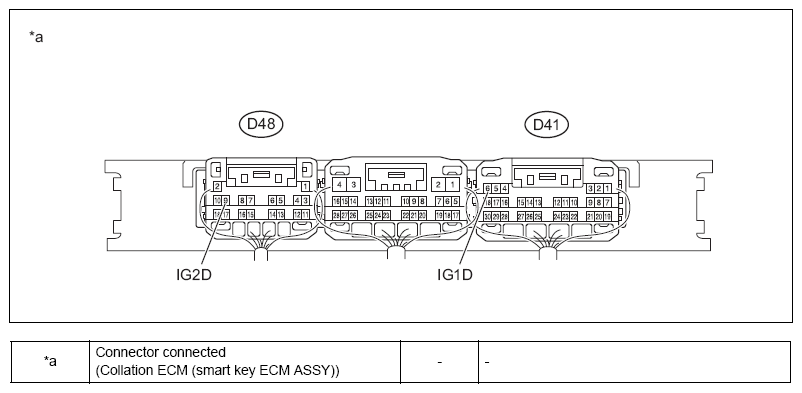

      G12589368Courtesy of SUBARU OF AMERICA, INC.
    2. Measure the voltage according to the following table.
      STANDARD VALUE SPECIFICATION - VOLTAGE

      Inspection terminals Inspection conditions Standard value
      D41-6 (IG1D) - chassis ground Engine switch on (ACC) →Engine switch on (IG) 1V or less →9 V or more
      D48-9 (IG2D) - chassis ground Engine switch on (ACC) →Engine switch on (IG) 1V or less →9 V or more

      OK: Go to next step

      NG: Replacement of the collation ECM (smart key ECM ASSY)

    Complete (Possibly temporary poor contact)
