Parts Location

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

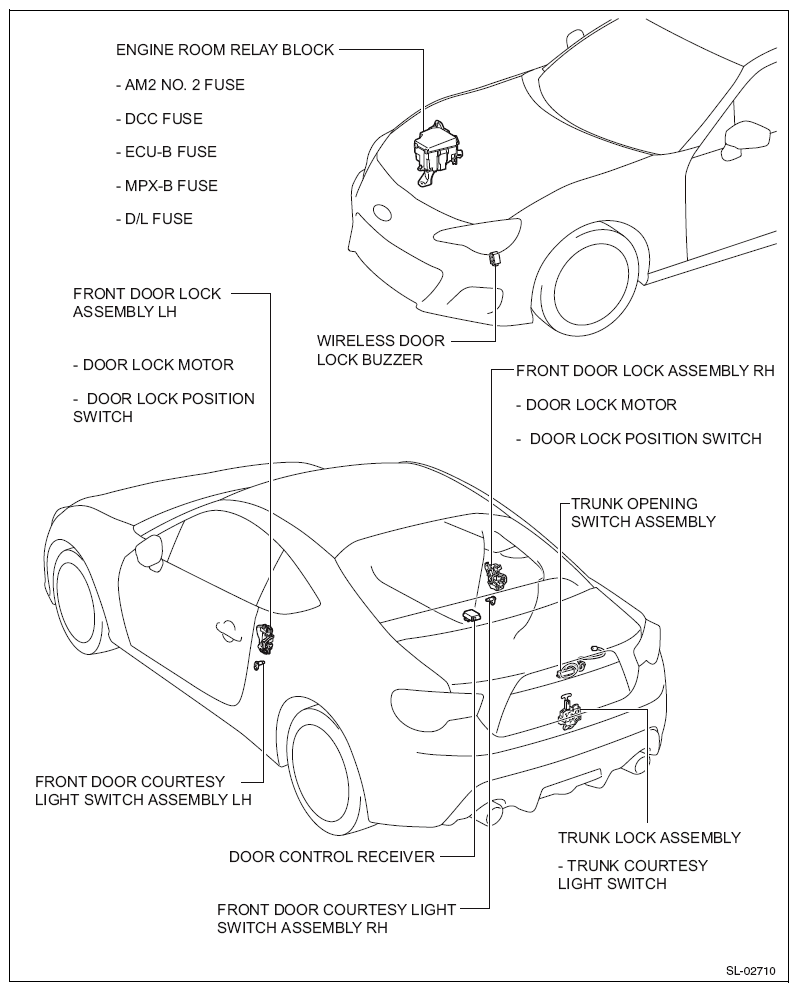

G10216198Courtesy of SUBARU OF AMERICA, INC.

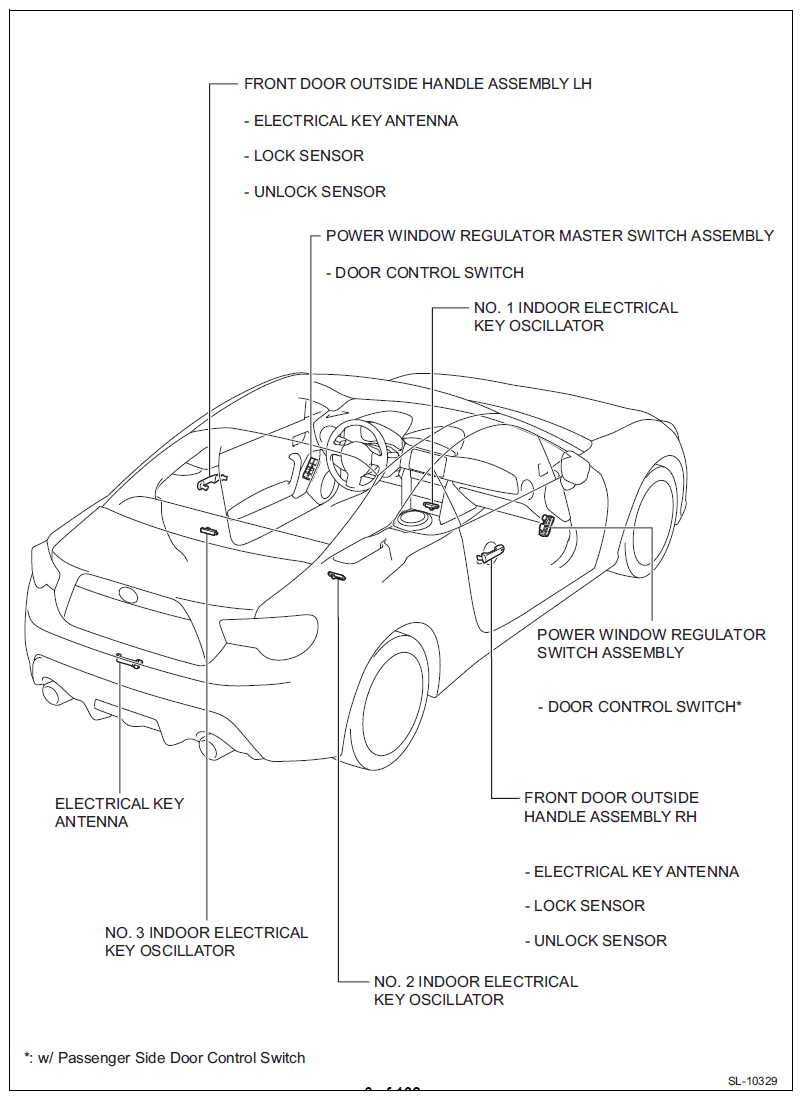

G11261375Courtesy of SUBARU OF AMERICA, INC.
G08552991Courtesy of SUBARU OF AMERICA, INC.

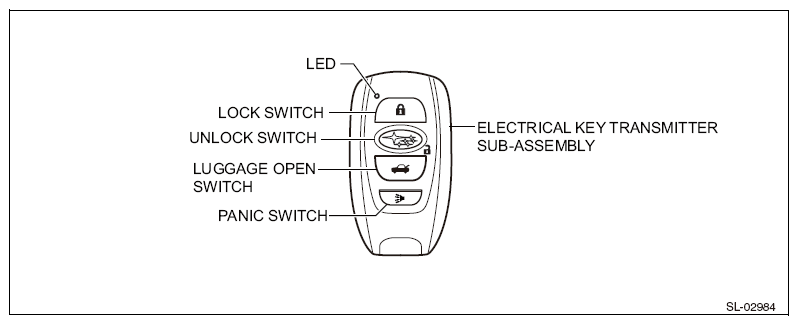

G12589249Courtesy of SUBARU OF AMERICA, INC.
