Unit Inspection
WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|

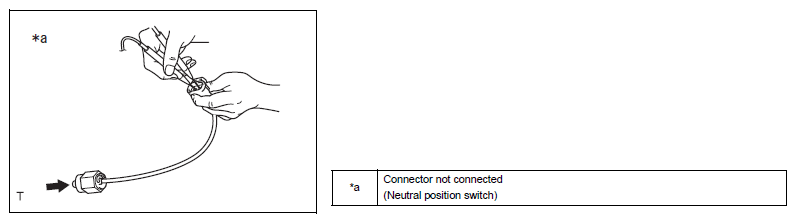

- Check of neutral position switch
- Measure the resistance between the terminals. Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
| 1 - 2 |
When switch is pressed in |
1 MΩ or more |
| When switch is not pressed in |
Less than 1 Ω |
If the resistance is not at the standard value, replace the neutral position switch.
