Exploded View

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

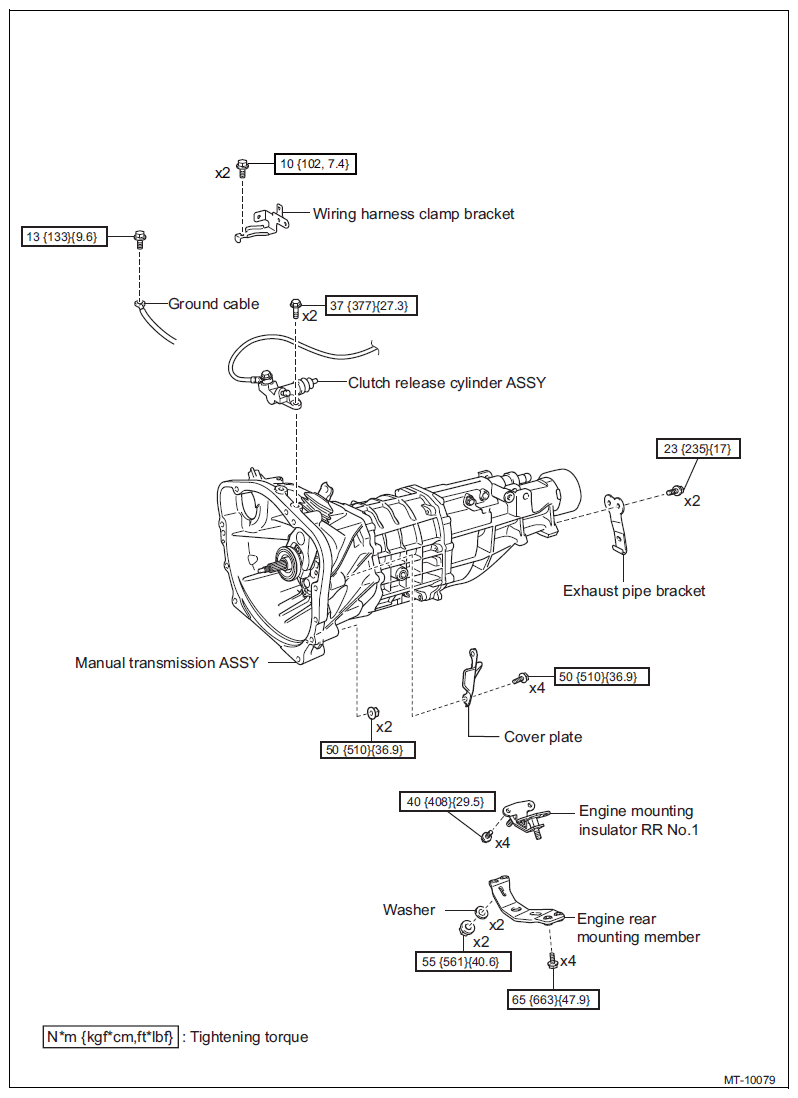

Fig 1: Manual Transmission Assembly Components With Torque Specification (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Manual Transmission Assembly Components With Torque Specification (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Manual Transmission Assembly Components With Torque Specification (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
