Unit Inspection

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of SUBARU OF AMERICA, INC.

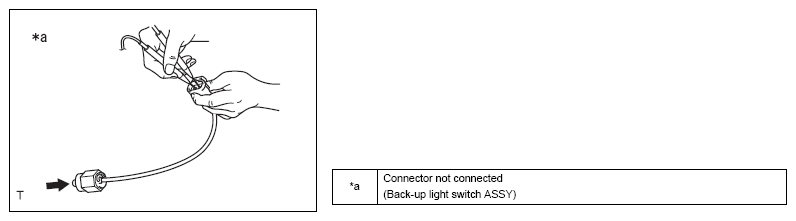

Check of back-up light switch ASSY

Measure the resistance between the terminals.

STANDARD VALUE RESISTANCE SPECIFICATION

Inspection terminals	Inspection conditions	Standard value
1 - 2	When switch is pressed in	Less than 1 Ω
1 - 2	When switch is not pressed in	1 MΩ or more

If the resistance is not within the normal value, replace the back-up light switch ASSY.
