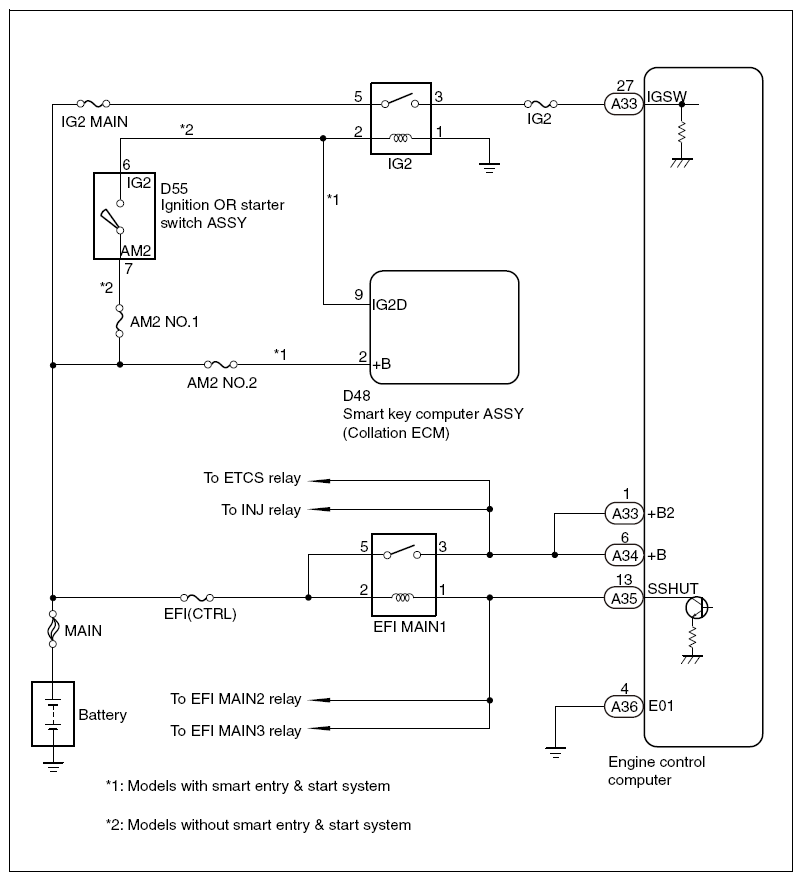

Home >> Subaru >> 2013 >> BRZ Premium, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Diagnostics) - System Troubleshooting >> ECM power supply system >> Circuit figure
