ECM terminal arrangement

  1. Instrument panel junction block assembly, main body ECM (Network gateway computer).

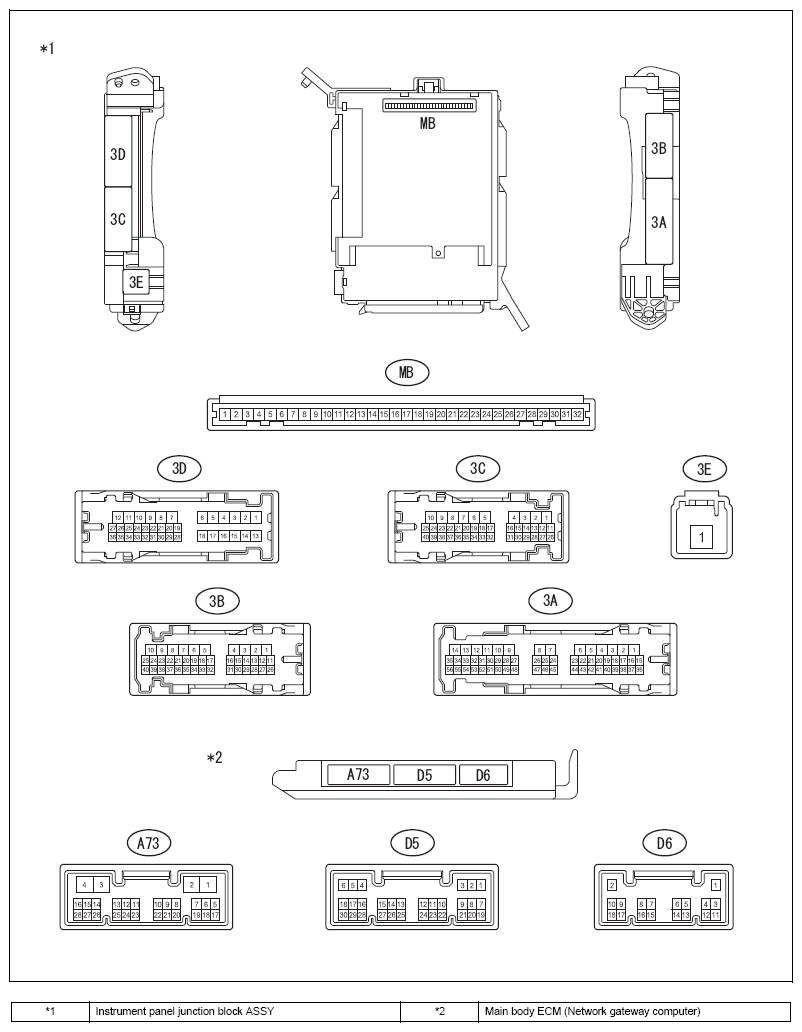

    Fig 1: ECM Terminal Layout (Instrument Panel Junction Block Assembly, Main Body ECM)
    G08557350Courtesy of SUBARU OF AMERICA, INC.
    1. Measure the voltage and resistance between terminals.
      NOTE: This inspection is performed from the back side of the connector with the connector in a connected state.
      Terminal No. (Terminal code) Input/Output Item Measuring condition Criteria
      3A-15 ↔Chassis ground Input Voltage IG ON 11 to 14V
      3A-20 ↔Chassis ground Input Voltage IG ON 11 to 14V
      3A-27 ↔Chassis ground Input Voltage Always 11 to 14V
      3C-19 ↔Chassis ground Input Voltage Always 11 to 14V
      3E-1 ↔Chassis ground Input Voltage Always 11 to 14V
      3A-12 ↔Chassis ground - Resistance Always Less than 1 Ω
      3A-13 ↔Chassis ground - Resistance Always Less than 1 Ω
      3B-18 ↔Chassis ground - Resistance Always Less than 1 Ω
      D6-1 (GND) ↔Chassis ground - Resistance Always Less than 1 Ω
      A73-4 (GND) ↔Chassis ground - Resistance Always Less than 1 Ω
    2. Remove the instrument panel junction block assembly from the main body ECM (Network gateway computer).
    3. Measure the voltage and resistance between terminals.
      Terminal No. (Terminal code) Input/Output Item Measuring condition Criteria
      MB-1 (BECU) ↔Chassis ground Input Voltage Always 11 to 14V
      MB-8 (IG) ↔Chassis ground Input Voltage IG ON 11 to 14V
      MB-9 (ACC) ↔Chassis ground Input Voltage ACC ON 11 to 14V
      MB-32 (BMPX) ↔Chassis ground Input Voltage Always 11 to 14V
      MB-11 (GND) ↔Chassis ground - Resistance Always Less than 1 Ω
