Exploded View

WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

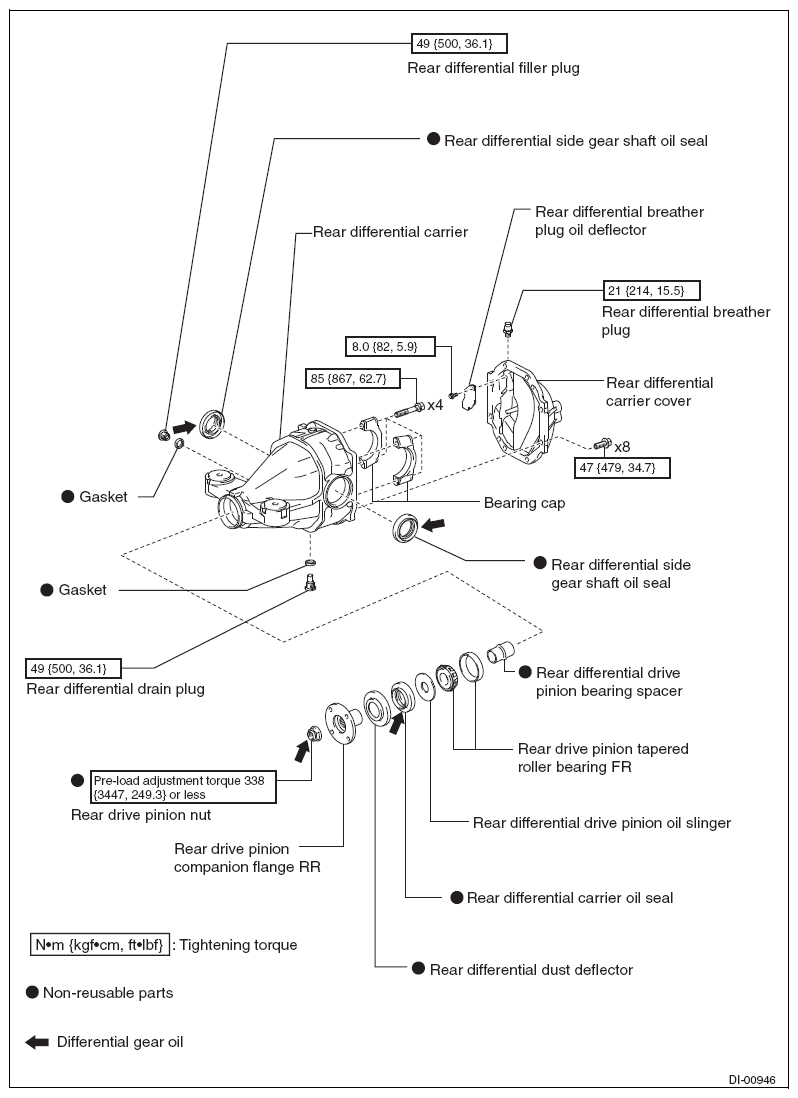

Fig 1: Rear Differential Carrier Assembly Components With Torque Specification (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

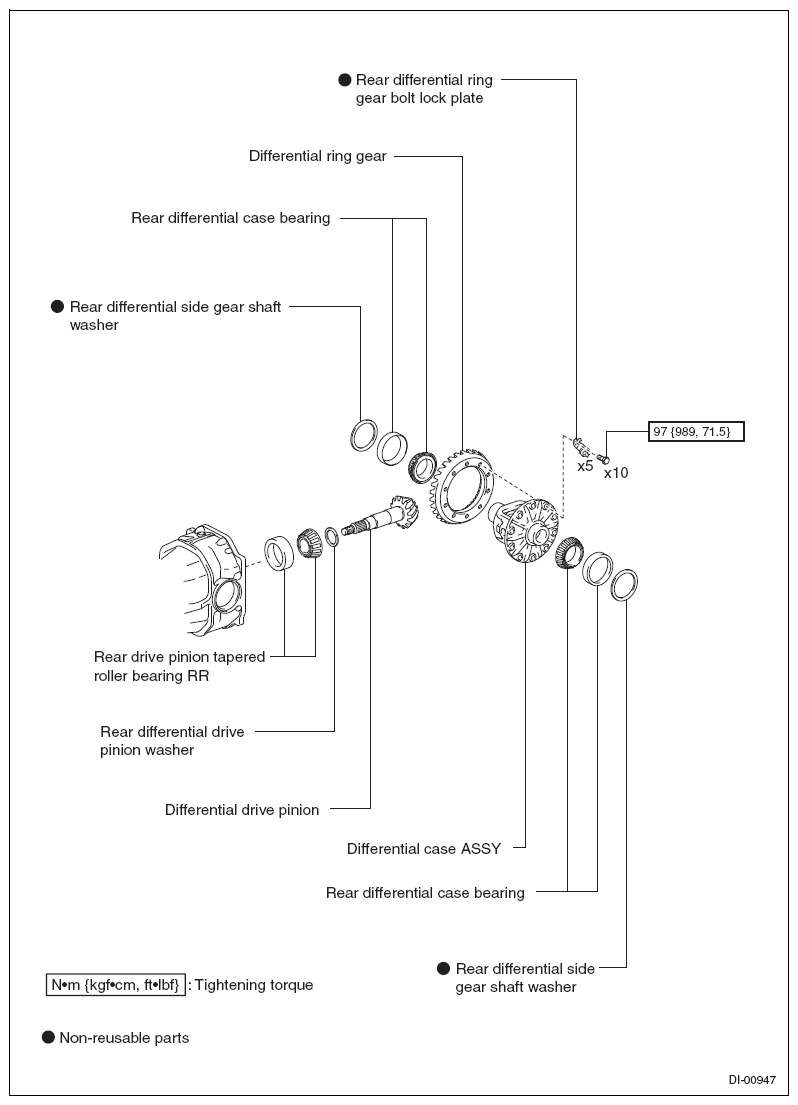

Fig 2: Rear Differential Carrier Assembly Components With Torque Specification (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

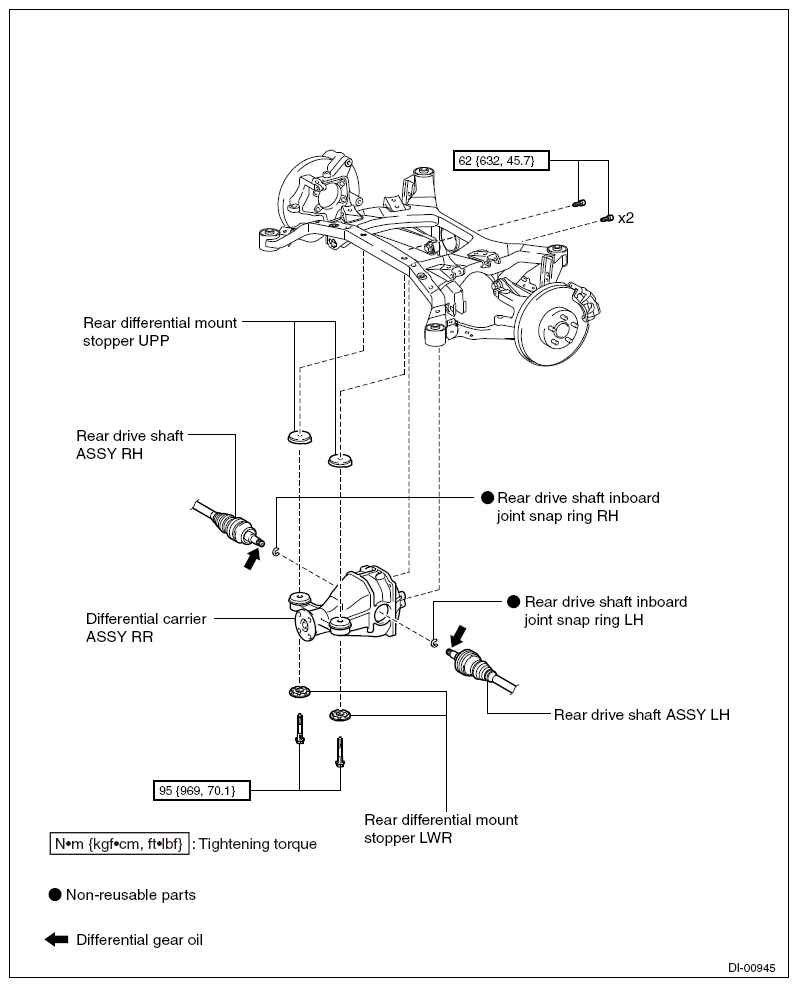

Fig 3: Rear Differential Carrier Assembly Components With Torque Specification (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
