Exploded View

WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

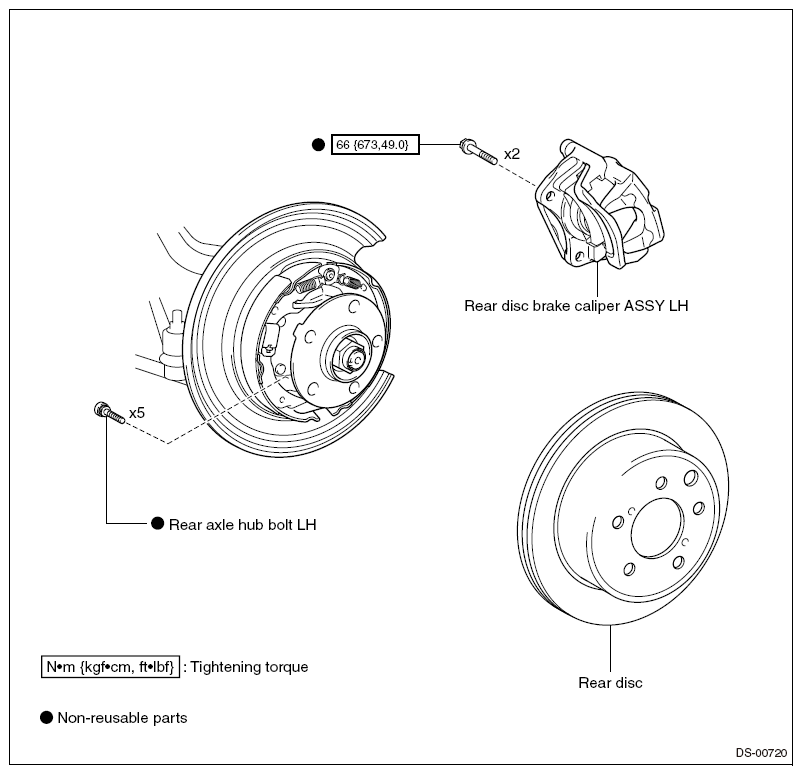

Fig 1: Rear Axle Hub Bolt Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.
