On-Vehicle Inspection
WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The following procedure is for LH side.
- Perform the same procedures for the RH and LH side.
- Removal of front tire
- Removal of front disc brake caliper ASSY LH (Refer to FRONT AXLE HUB BOLT )
- Removal of front disc (Refer to
REMOVAL (BREMBO TYPE)
)

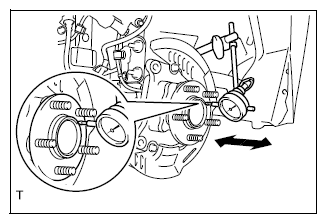

- Inspection of front axle hub & bearing ASSY axial play
- Inspect axial play of the bearing near the axle hub inner periphery (flange portion) using a dial gauge.
Limit: 0.05mm {0.00196in}
CAUTION: If it exceeds the limit, replace the front axle hub with a new part. - Inspect axial play of the bearing near the axle hub inner periphery (flange portion) using a dial gauge.

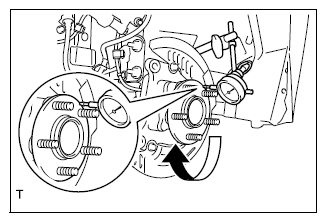

- Inspection of front axle hub & bearing ASSY runout
- Inspect runout of the axle hub near the axle hub outer periphery using a dial gauge.
Limit: 0.05mm {0.00196in}
CAUTION: If it exceeds the limit, replace the front axle hub with a new part. - Inspect runout of the axle hub near the axle hub outer periphery using a dial gauge.
- Installation of front disc (Refer to INSTALLATION (NORMAL TYPE) )
- Installation of front disc brake caliper ASSY LH (Refer to FRONT AXLE HUB )
- Installation of front tire
Standard value: T=120N.m {1224kgf.cm} {88.5ft.lbf}
