Unit Inspection

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

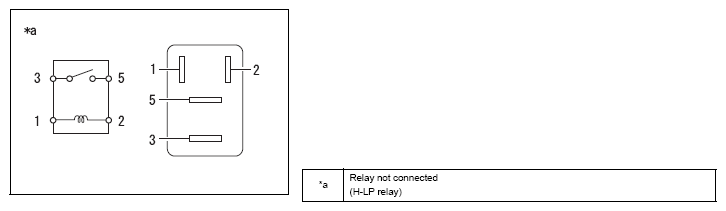

  1. Inspection of the H-LP relay
    1. Measure the resistance between connector terminals.
      STANDARD VALUE SPECIFICATION - RESISTANCE

      Inspection terminals Inspection conditions Standard value
      3 - 5 When battery voltage is not applied between terminals 1 and 2. 10 kΩ or more
      When battery voltage is applied between terminals 1 and 2. Less than 1 Ω
      G12595339Courtesy of SUBARU OF AMERICA, INC.
  2. Inspection of the DIM relay
    1. Measure the resistance between connector terminals.
      STANDARD VALUE SPECIFICATION - RESISTANCE

      Inspection terminals Inspection conditions Standard value
      3 - 5 When battery voltage is not applied between terminals 1 and 2. 10 kΩ or more
      When battery voltage is applied between terminals 1 and 2. Less than 1 Ω
      G12595340Courtesy of SUBARU OF AMERICA, INC.
  3. Inspection of the RR FOG relay
    1. Measure the resistance between connector terminals.
      STANDARD VALUE SPECIFICATION - RESISTANCE

      Inspection terminals Inspection conditions Standard value
      3 - 5 When battery voltage is not applied between terminals 1 and 2. 10 kΩ or more
      When battery voltage is applied between terminals 1 and 2. Less than 1 Ω
      G12595341Courtesy of SUBARU OF AMERICA, INC.
