Circuit Figure
WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

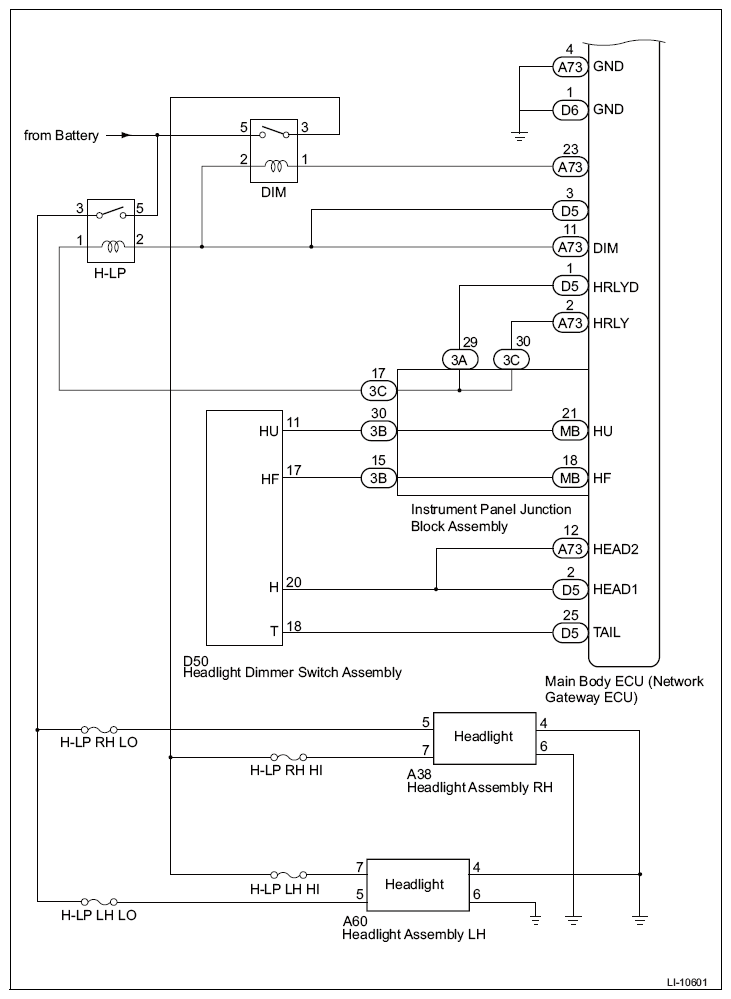

- Headlights
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|

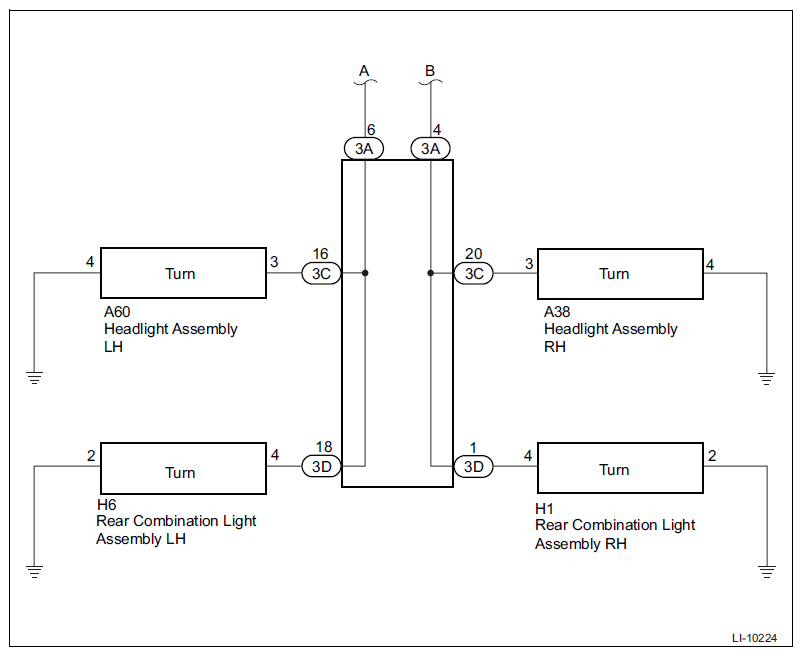

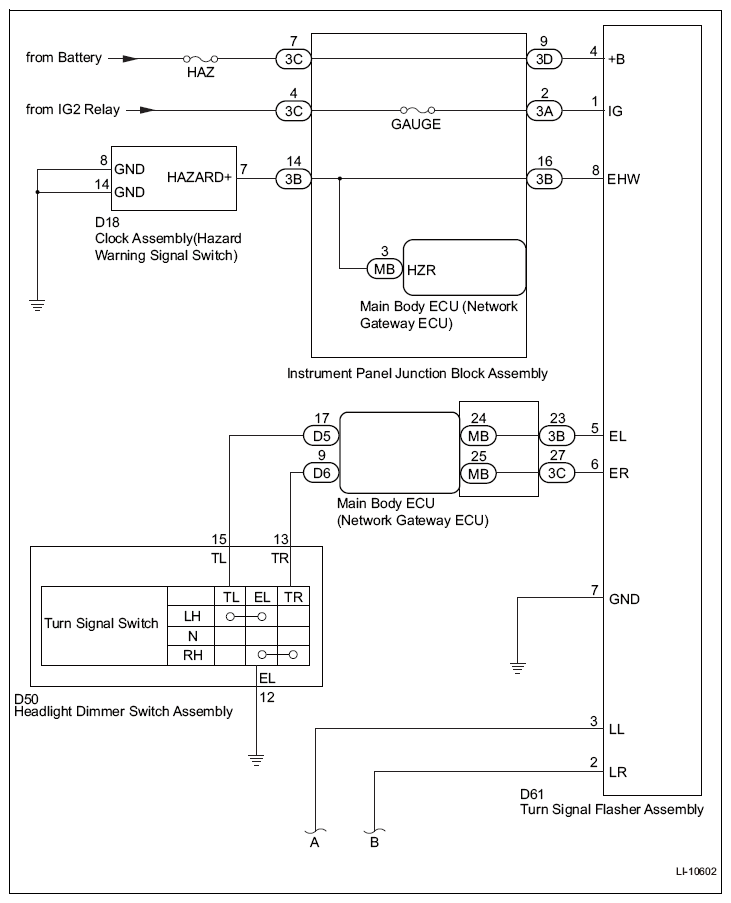

- Turn signal lights, hazard warning signal lights
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|

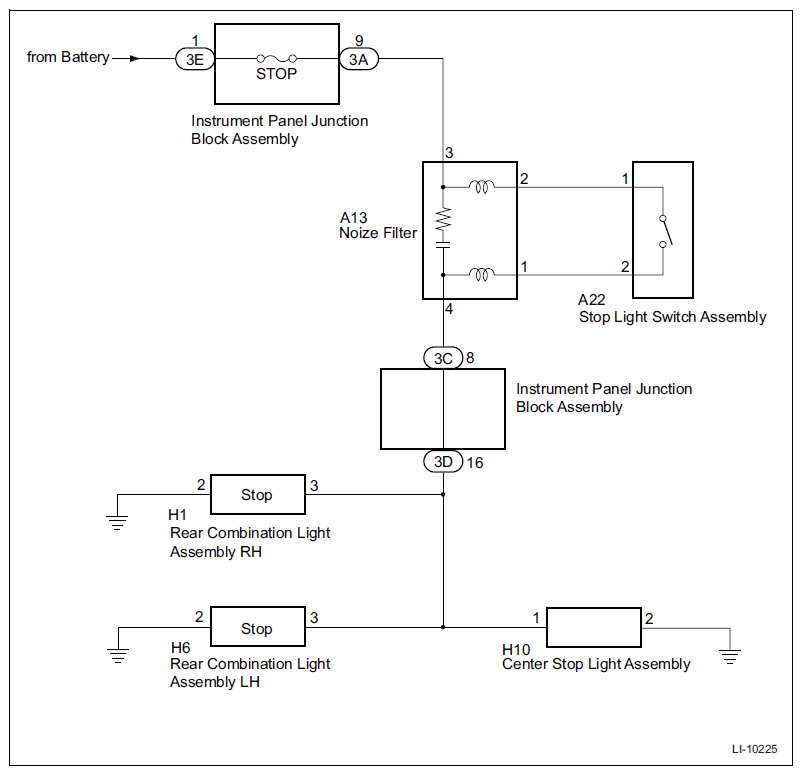

- Stop lights
 Courtesy of SUBARU OF AMERICA, INC.
|

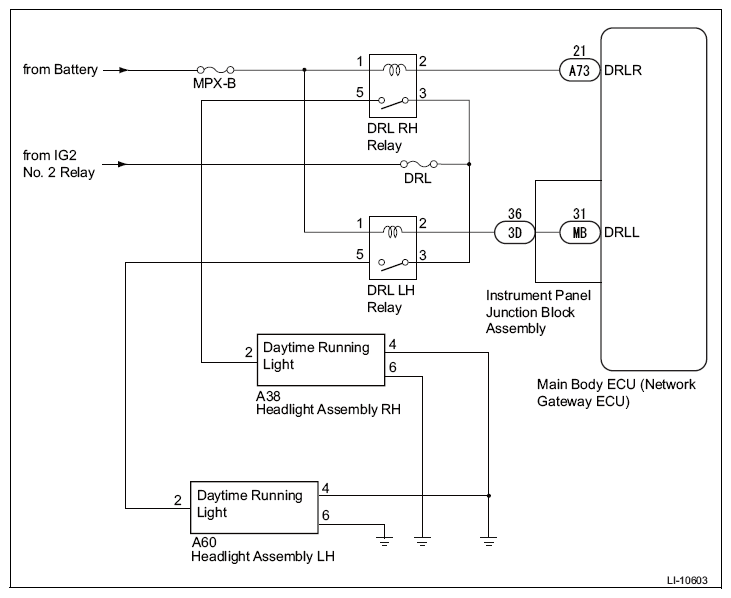

- DAYTIME RUNNING LIGHT SYSTEM
 Courtesy of SUBARU OF AMERICA, INC.
|
