Unit Inspection
WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
- Check of high-mounted stop light ASSY

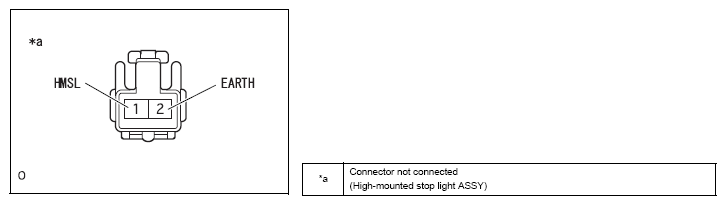

- Connect the battery positive and ground between each terminal, and check if the high-mounted stop light ASSY turns on.
BATTERY CONNECTION DESCRIPTION - CRITERIA
| Battery connection |
Criteria |
Battery positive →1 (HMSL)
Battery ground →2 (EARTH) |
The high-mounted stop light ASSY turns on. |
