Headlight Leveling Computer: Removal

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removal of the power steering computer ASSY (Refer to POWER STEERING COMPUTER )
  2. Removal of the instrument panel junction block ASSY (Refer to REMOVAL )

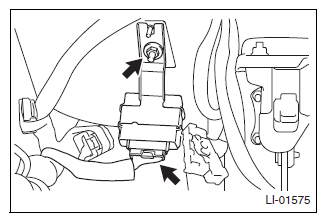

  3. Removal of the headlight leveling computer ASSY
    1. Disconnect the connector.
    2. Remove the nut, and remove the headlight leveling computer ASSY.
      G11263035Courtesy of SUBARU OF AMERICA, INC.
