Unit Inspection

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspection of the back-up light
    1. Inspect if the back-up light turns on when battery voltage is applied between the terminals.
      BATTERY CONNECTION DESCRIPTION - CRITERIA

      Battery connection Criteria
      Battery positive → Battery ground →3 (E) The back-up light turns on.

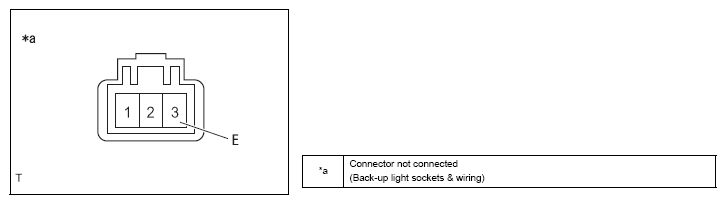

      G12595295Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Perform this inspection using new or properly-functioning bulbs.
