Unit Inspection
WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

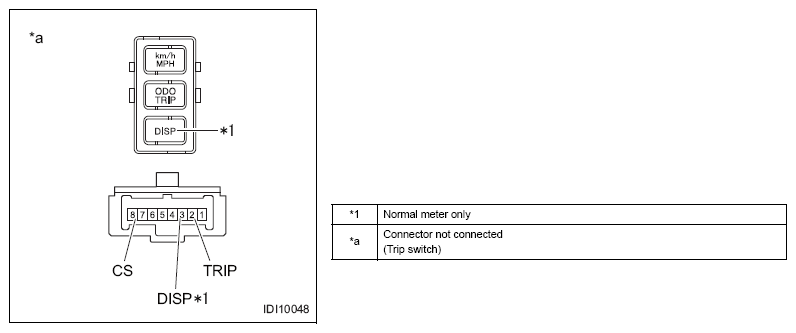

- Trip switch inspection
- Measure the resistance between the terminals.
STANDARD VALUE SPECIFICATION - RESISTANCEInspection terminals (Terminal symbol) Inspection conditions Standard value 2(TRIP) - 1 Trip switch OFF →ON 10 kΩ or more →less than 1 Ω 3(DISP) - 1 *1 Display switch OFF →ON 10 kΩ or more →less than 1 Ω 8(CS) - 1 Speed display setting switch OFF→ON 10 kΩ or more →less than 1 Ω
