Data Monitor/Active Test

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Inspection with SSM4

Data monitor

On the SSM4, navigate to the [Data monitor] display, and check the computer data.

SSM4 screen: [Each System] →[Combination Meter] →[Data monitor]

Item name [Symbol]

Description/display range

Normal value

Remarks

[Auto/Trip selector SW status]

ODO/TRIP Change SW state
Display range: OFF/ON

ON: When the switch is pressed
OFF: When the switch is released

If it is abnormal, the trip switch may be faulty

[Bright (tail cancel) SW status]

Tail relay SW state
Display range: OFF/ON

ON: Light control switch TAIL
OFF: Light control switch OFF

If it is abnormal, the tail relay or wiring harness may be faulty

[Buckle Switch, Passenger]
[P-Belt SW]

Passenger's seat buckle SW state
Display range: OFF/ON

ON: Passenger's seat buckle switch ON
OFF: Passenger's seat buckle switch OFF

If it is abnormal, the passenger's seat buckle switch or wiring harness may be faulty

[Display SW state] ⁽¹⁾

Display changeover SW state
Display range: OFF/ON

ON: When the switch is pressed
OFF: When the switch is released

If it is abnormal, the trip switch or wiring harness may be faulty

[Multi Display Switch (Up)] ⁽²⁾

Multi SW state (up)
Display range: OFF/ON

ON: When the switch is pressed
OFF: When the switch is released

If it is abnormal, the steering switch or wiring harness may be faulty

[Multi Display Switch (Down)] ⁽²⁾

Multi SW state (down)
Display range: OFF/ON

[Multi Display Switch (Left)] ⁽²⁾

Multi SW state (left)
Display range: OFF/ON

[Multi Display Switch (Right)] ⁽²⁾

Multi SW state (right)
Display range: OFF/ON

[Multi Display Switch (Enter)] ⁽²⁾

Multi SW state (ENTER)
Display range: OFF/ON

[Multi Display Switch (Back)] ⁽²⁾

Multi SW state (BACK)
Display range: OFF/ON

[+B volt]

Input voltage
Display range: 0 to 25.5V

Input voltage is displayed 11 to 14 V

[Vehicle speed input value]

Vehicle speed input value
Display range: 0 to 255[km/h]

0 to 255[km/h]
Roughly synchronized with actual vehicle speed

Check the reading error of the speed meter

[Engine speed input value]

Engine speed input
Display range: 0 to 12750[r/min]

Engine running state
Roughly synchronized with engine speed

Check the reading error of the tachometer

[Engine water temperature input value]

Engine coolant temperature input
Display range: 0 to 127.5°C

Equivalent to ambient temperature: When engine is cold
When fully warmed up: 80 to 100°C (176 to 212°F)

If it is abnormal, the coolant temperature signal system may be faulty

[Fuel Input]
[Fuel Input]

Input value of fuel sender Display range: 0 to 127.5[L]

Fuel level is displayed 4.0 to 50[L]

If it is abnormal, the fuel sender gauge or wiring harness may be faulty

[Ambient Temperature]
[Ambi Temp]

Ambient temperature
Display range: -40 to 87.5°C

Almost equals to the ambient temperature

[Illuminations control volume input value]

Rheostat input status
Display range: 0 to 100 %

Volume value of the rheostat is displayed
0 to 100 %

If it is abnormal, the light control rheostat or wiring harness may be faulty

[Quantity of Outside Light]
[OUT LIGHT]

External dimming output state
Display range: 0 to 100 %

External dimming volume value is displayed
0 to 100 %

If it is abnormal, the light control rheostat or wiring harness may be faulty

[Key reminder buzzer sounding interval]

Key reminder sound
Display range: 600 ms, 900 ms, 1200 ms

Buzzer sounding interval is displayed
FAST, NORMAL, SLOW

[Tail reminder buzzer]

Tail reminder buzzer sound
Display range: ON/OFF

Tail reminder buzzer operation is displayed
ON, OFF

[Speed warning buzzer]

Speed warning buzzer sound
Display range: ON/OFF

Speed warning buzzer operation is displayed
ON, OFF

⁽¹⁾	Normal meter

⁽²⁾

TFT meter

NOTE: Items without settings are not displayed in the SSM4 or do not function.

Active test

Using SSM4, display the [Active Test] screen according to the screen and perform check.

SSM4 screen: [Each System] →[Combination Meter] →[Active Test]

Item name

Contents of testing

Check item

[Speedometer]

Movement of the speed meter pointer

0, 40, 80, 120, 160, 200, 240 (km/h)⁽¹⁾

[Tacho meter]

Movement of the tachometer pointer

0, 1000, 2000, 3000, 4000, 5000, 6000, 7000 (r/min)⁽¹⁾

[Fuel Meter Operation]

Movement of the fuel meter pointer (Refer to fuel receiver gauge [Display 1] or [Display 2])

Sender E point [Display A]
Meter E scale [Display B]
Warning lighting position [Display C]
Meter 1/4 scale [Display D]
Meter 1/2 scale [Display E]
Meter 3/4 scale [Display F]
Meter F scale [Display G]
Sender F point [Display H]

[AT indicator No. 1 ]

Display on the multi display

Illuminates 1, 2, 3, 4, 5, 6, D, N, R, P (position), sport shift M and sport shift D.

[Display]

Display on the multi display

Illuminates 9, 8, 7, 6, 5, 4, 3, 2, 1, 0 or all (For TFT meter, all turn on)

[High-beam indicator]

Display on the meter indicator

BEAM

[Front Fog Light indicator]

Display on the meter indicator

FR FOG

[Rear Fog Light indicator]

Display on the meter indicator

RR FOG

[Airbag warning]

Display on the meter indicator

AIRBAG

[Driver side seat belt warning]

Display on the meter indicator

D SEAT BELT

[P seat seat-belt warning]

Display on the clock indicator

P SEAT BELT

[Door (ALL) warning] ⁽²⁾

Display on the meter indicator

DOOR

[Remaining fuel warning] ⁽²⁾

Display on the meter indicator

FUEL

[ABS Warning Lamp]

Display on the meter indicator

ABS

[Slip Indicator Light]

Display on the meter indicator

SLIP

[TRC OFF indicator]

Display on the meter indicator

TRC OFF

[Tire Pressure warning]

Display on the meter indicator

Tire pressure

[Brake Warning Light]

Display on the meter indicator

Brake

[SPORT indicator] ⁽²⁾

Display on the meter indicator

SPORT

[SNOW indicator] ⁽²⁾

Display on the meter indicator

SNOW

[A/T Oil Temperature warning] ⁽²⁾

Display on the meter indicator

AT OIL TEMP

[Electric power steering warning]

Display on the meter indicator

EPS

[Cruise indicator] ⁽²⁾

Display on the meter indicator

CRUISE (green)

[Shift indicator (up)] +2

Display on the multi display

Shift (up)

[Shift indicator (down)] ⁽²⁾

Display on the multi display

Shift (down)

[SET indicator] ⁽²⁾

Display on the meter indicator

SET

[VSC OFF indicator]

Display on the meter indicator

VSC OFF

[Cruise warning] ⁽²⁾

Display on the meter indicator

CRUISE (yellow)

[Smart system indicator]

Display on the meter indicator

Smart warning (green)

[Smart system warning]

Display on the meter indicator

Smart warning (yellow)

[Check engine warning]

Display on the meter indicator

Check engine

[Hill Start Assist Working Lamp]

Display on the meter indicator

HSA

[Charge Warning Lamp]

Display on the meter indicator

CHARGE

[Water thermometer] ⁽²⁾

Movement of the water thermometer pointer (Refer to water temperature receiver gauge [Display 3])

55°C {122°F} [Display A]
60°C {140°F} [Display B]
70°C {158°F} [Display C]
80°C {176°F} [Display D]
Intermediate stable range [Display E]
110°C {230°F} [Display F]
120°C {248°F} [Display G]
127°C {261°F} [Display H]

⁽¹⁾	When performing an active test, check if the actual meter reading is within the allowable range of meter reading (Refer to METER & GAUGE SYSTEM ).

⁽²⁾	Normal meter

NOTE:

Items without settings are not displayed in the SSM4 or do not function.
Telltales with no setting do not operate.
If items do not operate normally, it can be determined that the combination meter ASSY is faulty.

Courtesy of SUBARU OF AMERICA, INC.

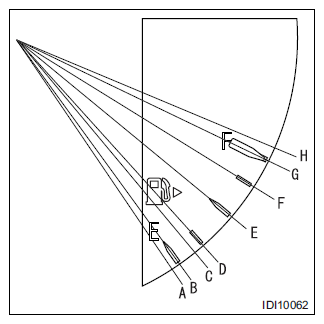

[Display 1]: Fuel receiver gauge (normal meter)

Display	Gauge indicator position
A	Sender E point
B	Meter E scale
C	Warning illumination point
D	Meter 1/4 scale
E	Meter 1/2 scale
F	Meter 3/4 scale
G	Meter F scale
H	Sender F point

Courtesy of SUBARU OF AMERICA, INC.

[Display 2]: Fuel receiver gauge (TFT meter)

Display	Gauge indicator position
A	Sender E point
B	Meter E scale
C	Warning illumination point
D	Meter 1/4 scale
E	Meter 1/2 scale
F	Meter 3/4 scale
G	Meter F scale
H	Sender F point

Courtesy of SUBARU OF AMERICA, INC.

[Display 3]: Water temperature receiver gauge

Display	Gauge indicator position
A	50°C {122°F}
B	60°C {140°F}
C	70°C {158°F}
D	80°C {176°F}
E	Intermediate stable range
F	110°C {230°F}
G	120°C {248°F}
H	127°C {261°F}
