Combination Meter ASSY: Assembly

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The procedures described below are for the normal meter. Operate the TFT meter performing the same procedures as the normal meter.

Courtesy of SUBARU OF AMERICA, INC.

Installation of the combination meter cover

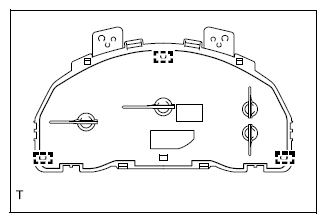

1. Engage six claws and install the combination meter cover.
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: When installing the combination meter cover, make sure that each dial is secured to the positioners.

Courtesy of SUBARU OF AMERICA, INC.
Installation of the combination meter glass
1. Engage seven claws and install the combination meter glass.
