Oil Pump Assembly (FA20): Components

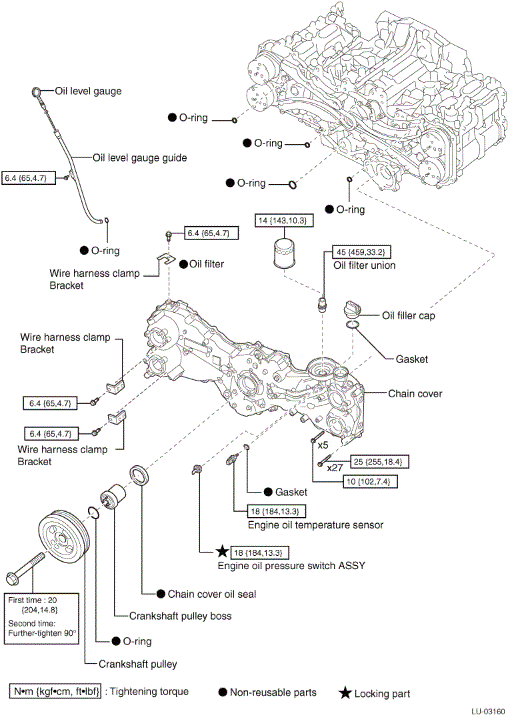

Fig 1: Identifying Oil Pump Assembly Replacement Components With Torque Specifications (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

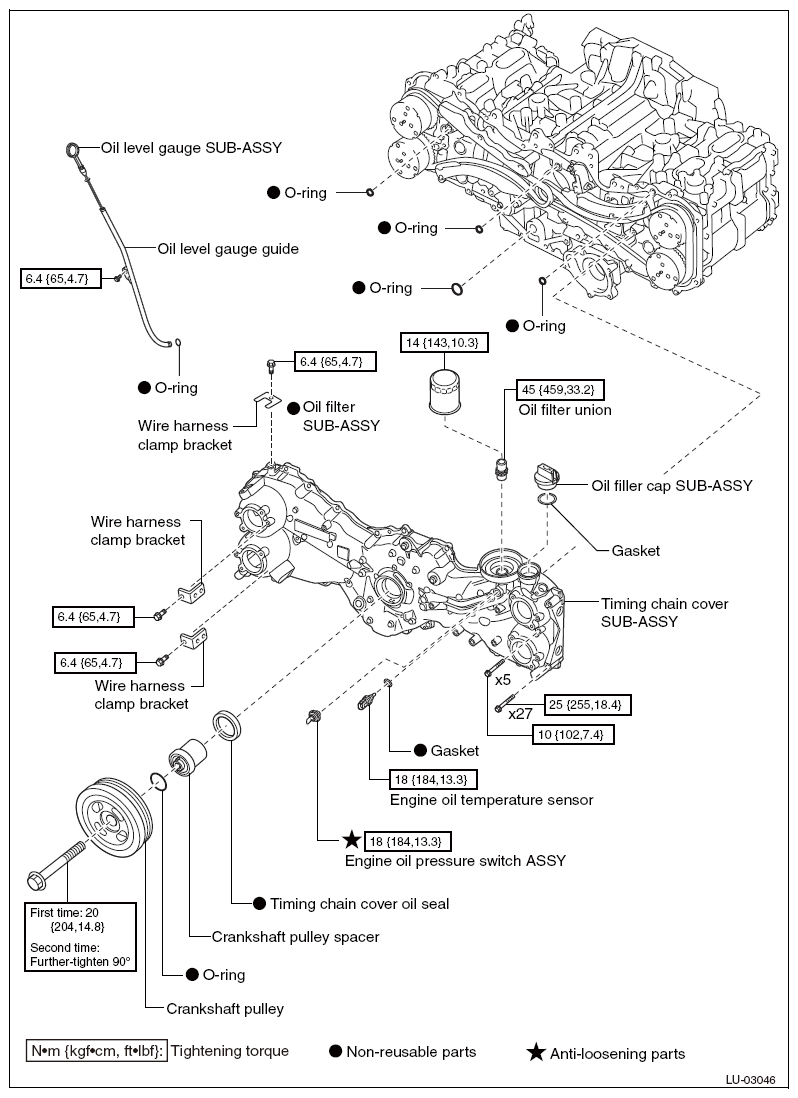

Fig 2: Identifying Oil Pump Assembly Replacement Components With Torque Specifications (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

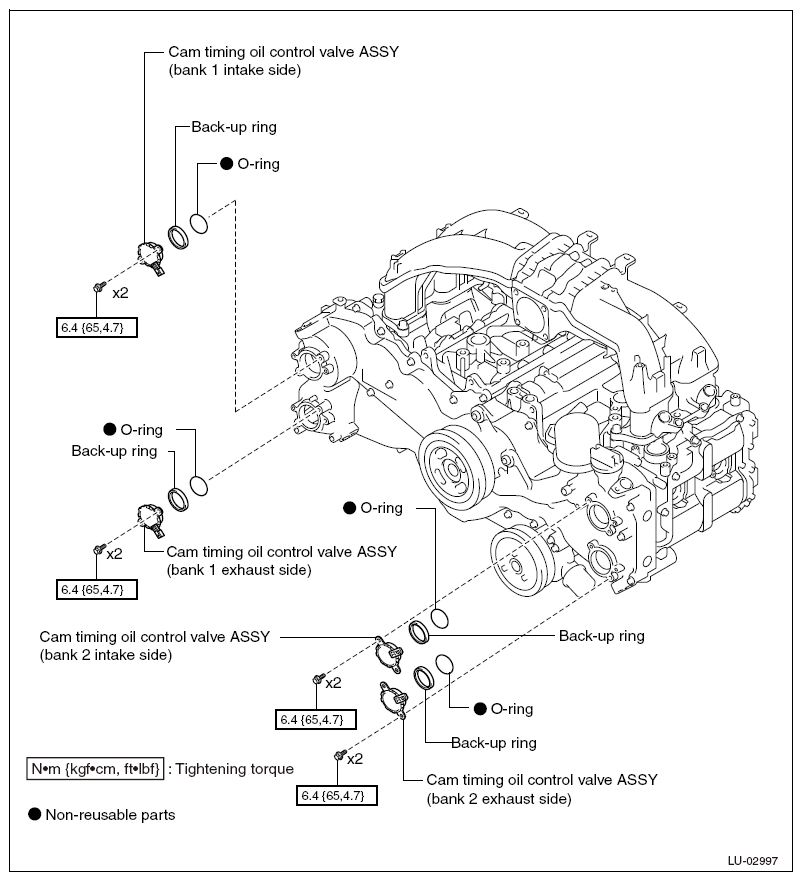

Fig 3: Identifying Oil Pump Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Oil Pump Assembly Replacement Components With Torque Specifications (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Oil Pump Assembly Replacement Components With Torque Specifications (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
