Exhaust pipe assembly (FA20)
>>
Exploded view
Exploded view

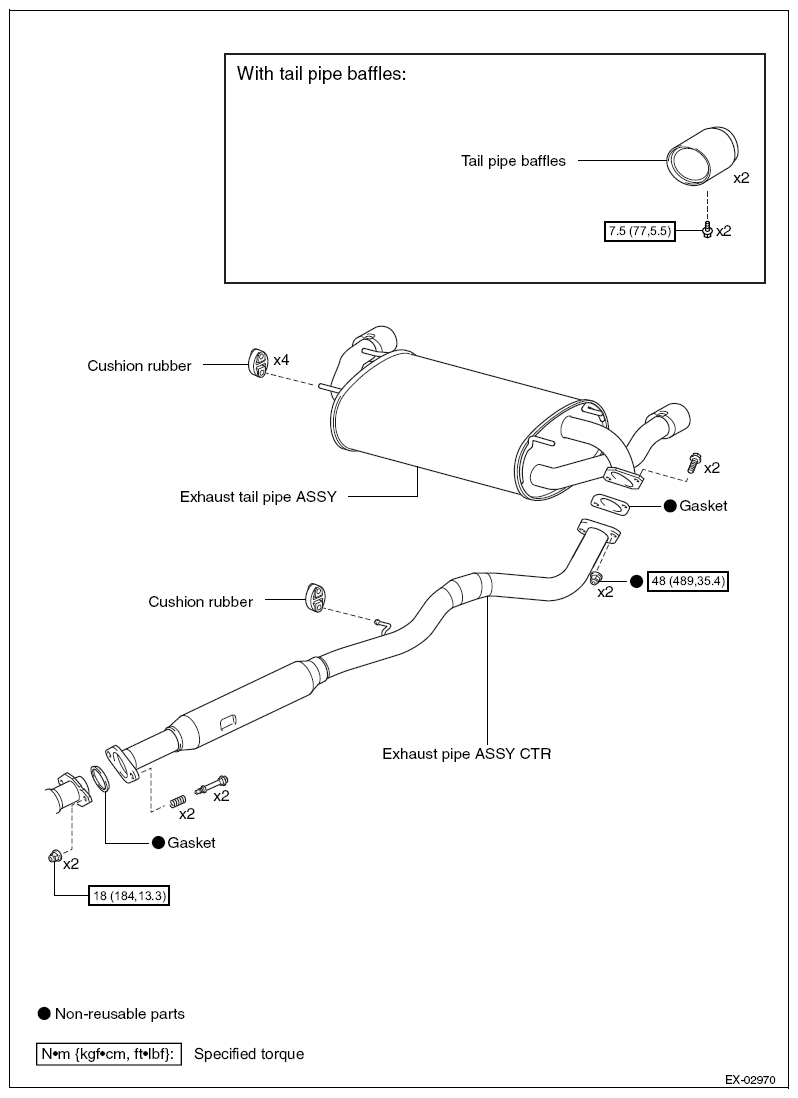

Fig 1: Exploded View Of Exhaust Pipe assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Exhaust Pipe assembly With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
