Fuse Index Information

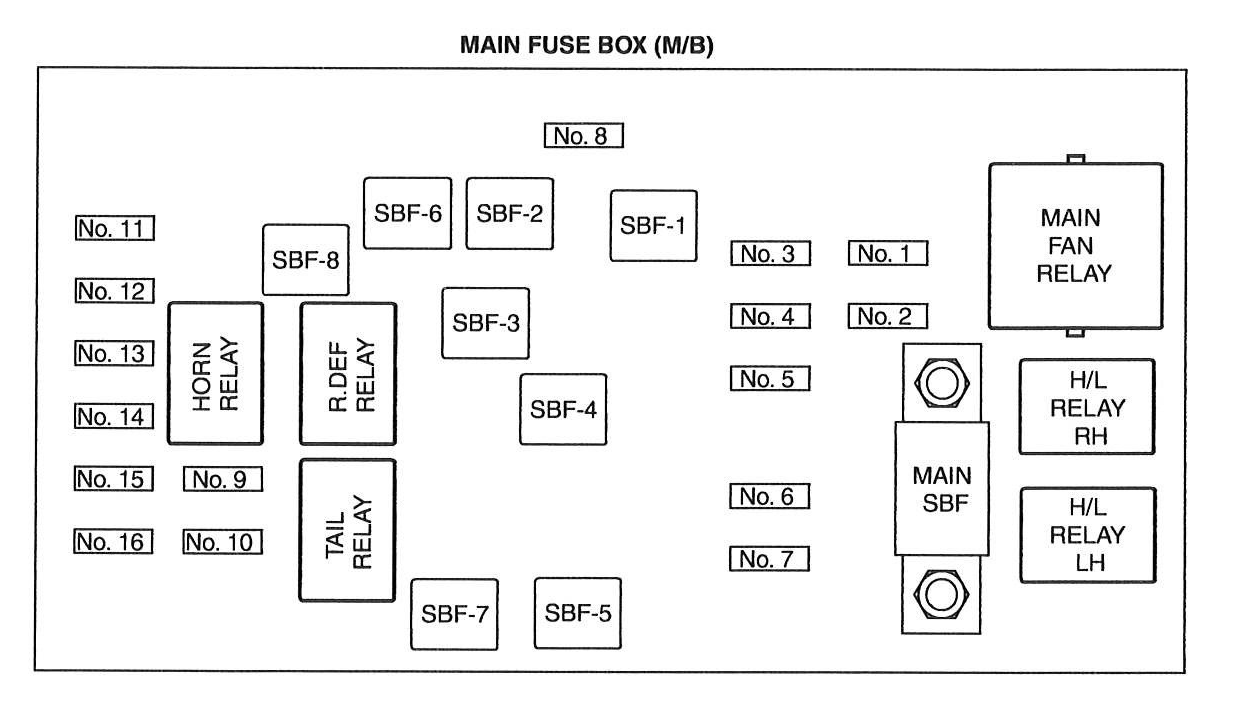

UNDER-HOOD FUSE/RELAY BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Horn Relay |
| Tail Relay |
| Rear Defogger Relay |
| Main Fan Relay |
| Headlamp Relay RH |
| Headlamp Relay LH |

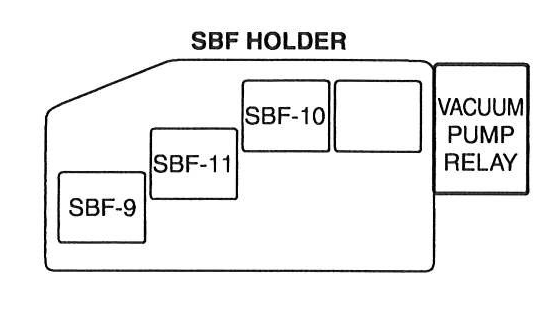

UNDER-HOOD FUSE/RELAY BOX (SPF HOLDER) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Vacuum Pump Relay |

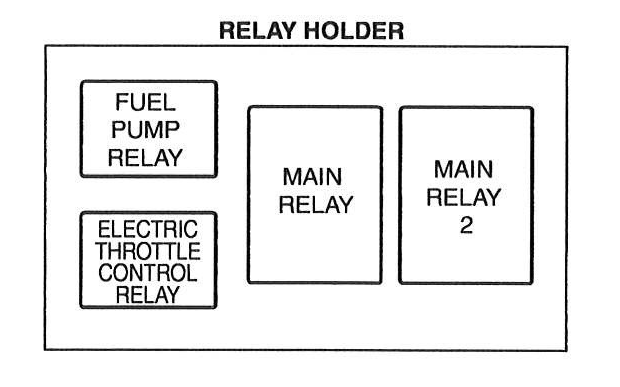

UNDER-HOOD FUSE/RELAY BOX (RELAY HOLDER 1) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Fuel Pump Relay |
| Electric Throttle Control Relay |
| Main Relay |
| Main Relay 2 |

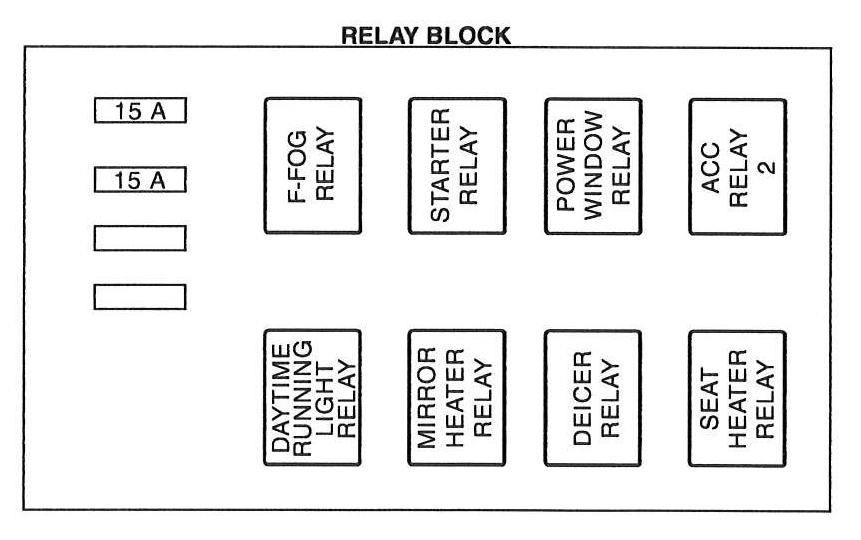

UNDER-HOOD FUSE/RELAY BOX (RELAY BLOCK) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| daytime Running Light Relay |
| Front Fog Relay |
| Mirror Heater Relay |
| Starter Relay |
| Deicer Relay |
| Power Window Relay |
| Seat Heater Relay |
| ACC Relay 2 |

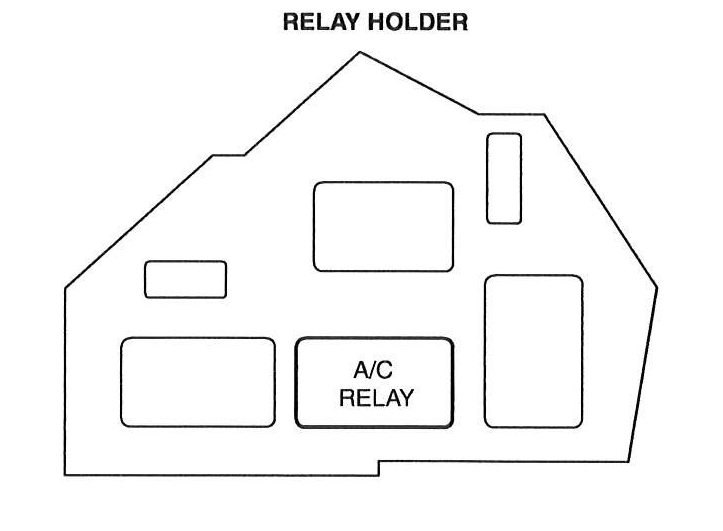

UNDER-HOOD FUSE/RELAY BOX (RELAY HOLDER 2) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| A/C Relay |
UNDER-HOOD FUSE/RELAY BOX INDEX
| Fuse No. | Fuse Rating | Circuit |
|---|---|---|
| 1 | 30A | Vehicle Dynamics Control Unit |
| 2 | 20A | Accessory power outlet (Console socket) |
| 3 | 15A | Headlight (Right side) |
| 4 | 15A | Headlight (Left side) |
| 5 | 20A | Backup |
| 6 | 15A | Horn |
| 7 | 25A | Rear window defogger |
| 8 | 15A | Fuel pump |
| 9 | 15A | Automatic Transmission Control Unit |
| 10 | 7.5A | Engine Control Unit |
| 11 | 15A | Turn & Hazard warning flashers |
| 12 | 20A | Parking switch |
| 13 | 7.5A | Alternator |
