Window Washer

• Make sure the nozzle and hose are not clogged.
• Make sure the hose is not bent.
• While the vehicle is at a standstill, make sure that the washer injection position is as shown in the figure.

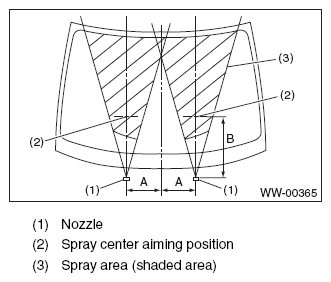

Front injection position:

A: 250 mm (9.84 in)

B: 433 mm (17.0 in)

Fig 1: Identifying Front Injection Position

Courtesy of SUBARU OF AMERICA, INC.

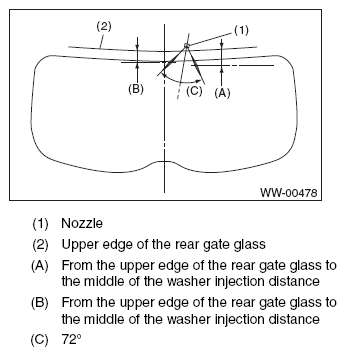

Rear injection position:

A: 106 mm (4.17 in)

B: 93 mm (3.66 in)

C: 72°

Fig 2: Identifying Rear Injection Position

Courtesy of SUBARU OF AMERICA, INC.
