Select Lever Cannot Be Locked Or Released

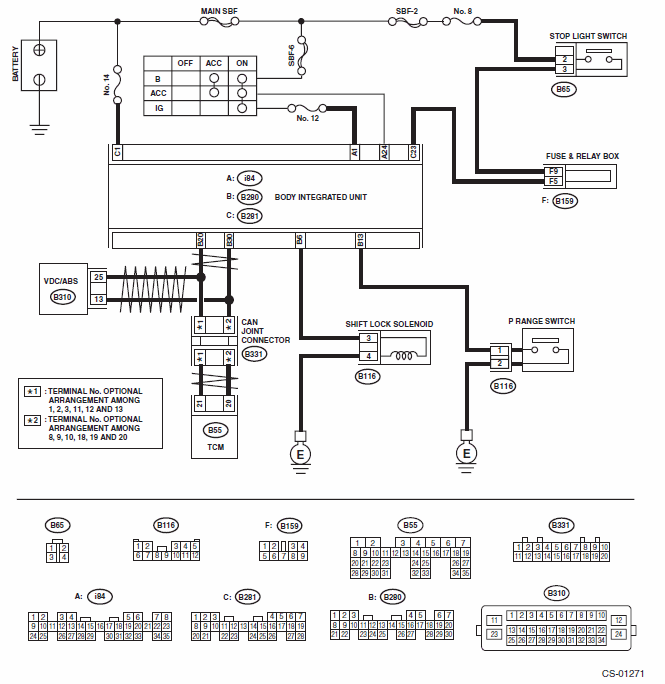

Fig 1: Select Lever Cannot Be Shifted - Circuit Diagram

Courtesy of SUBARU OF AMERICA, INC.

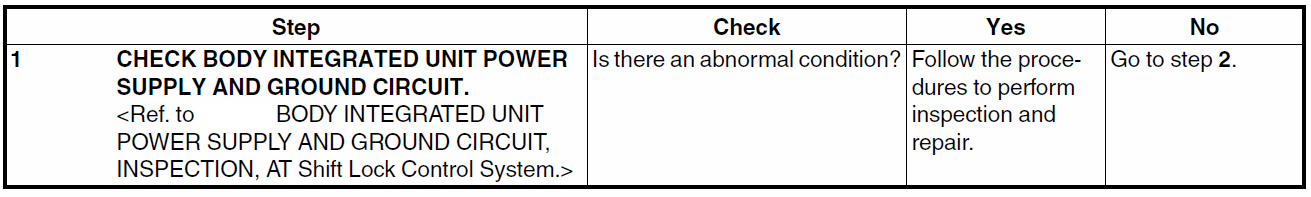

Fig 2: Select Lever Cannot Be Shifted Diagnosis Procedure Chart (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

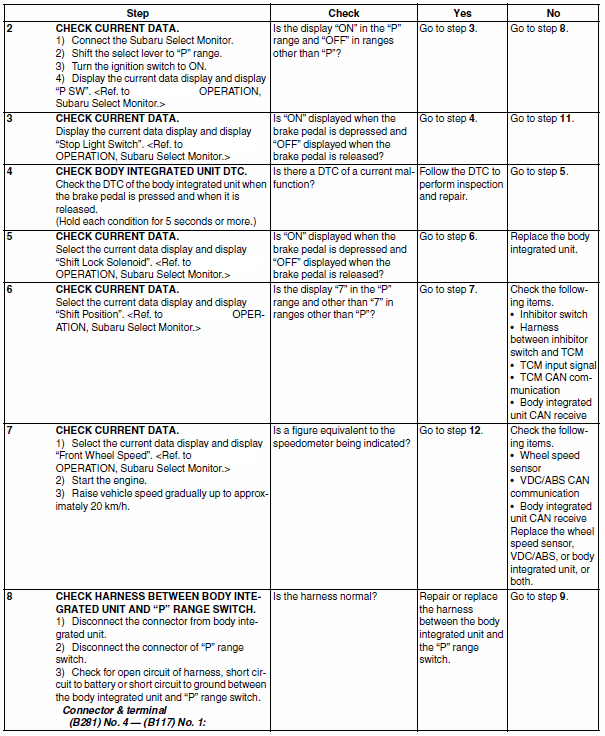

Fig 3: Select Lever Cannot Be Shifted Diagnosis Procedure Chart (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

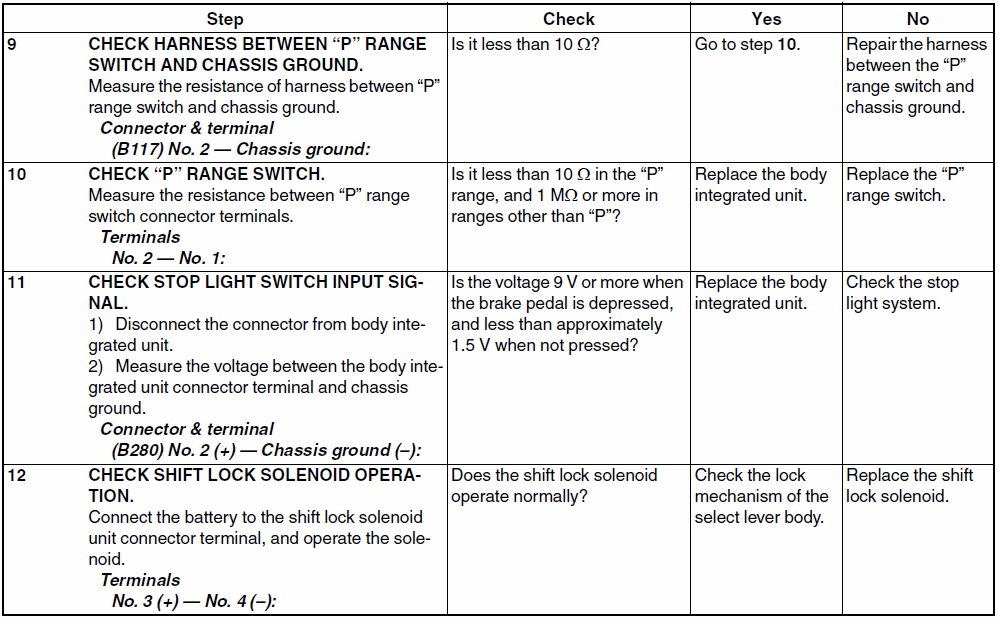

Fig 4: Select Lever Cannot Be Shifted Diagnosis Procedure Chart (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
