Oil Charge Pipe: Removal

  1. Set the vehicle on a lift.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the under cover.
  5. Remove the front exhaust pipe.
  6. Clean the transmission exterior.
  7. Disconnect the connector from turbine speed sensor 1.
    Fig 1: Turbine Speed Sensor 1 Connector
    G00514655Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the turbine speed sensor 1 mounting bolt and rotate the sensor by 180°.

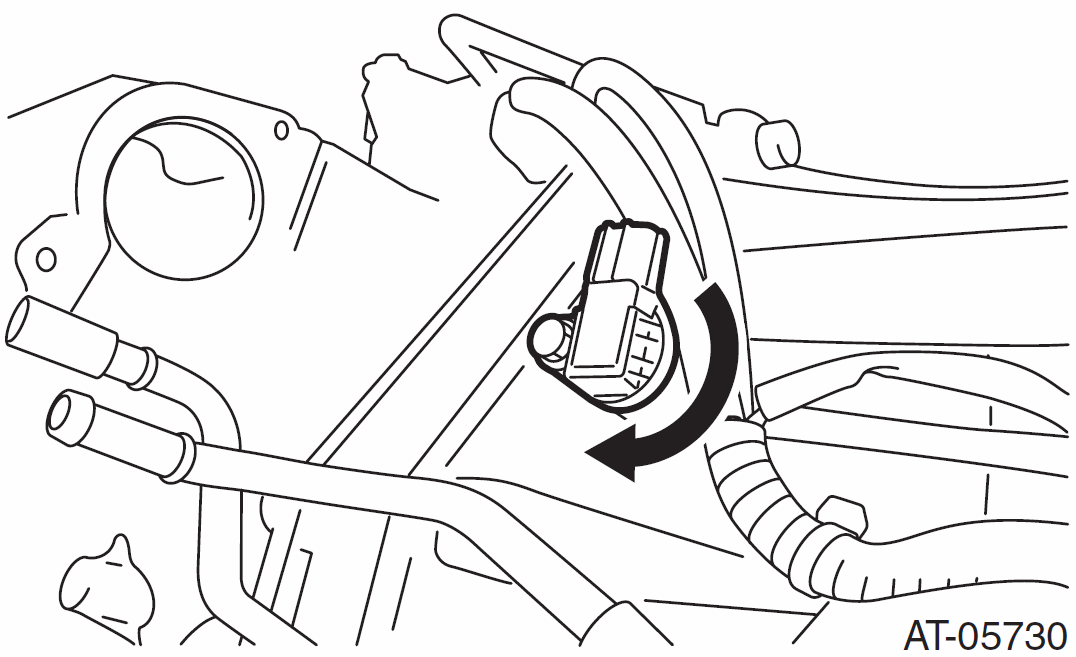

    Fig 2: Removing Turbine Speed Sensor 1 Connector
    G00514656Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the oil charge pipe, and then remove the O-ring from flange side.
    Fig 3: Identifying Oil Charge Pipe And O-Ring
    G06342939Courtesy of SUBARU OF AMERICA, INC.
