Center Differential Carrier: Disassembly

Remove the seal ring.

Fig 1: Identifying Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
Using a press and ST, remove the ball bearing.
ST 498077600 REMOVER

Fig 2: Identifying Ball Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring, and pull out the piston shaft from center differential assembly.

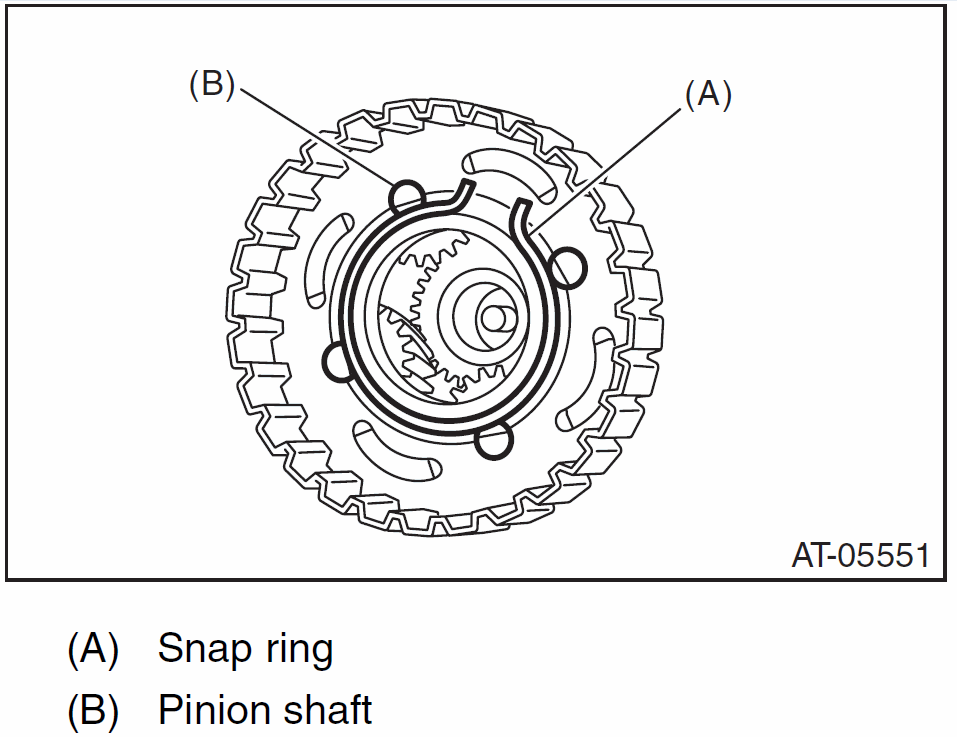

Fig 3: Identifying Piston Shaft And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust washers, pinion gears and washers from center differential assembly.

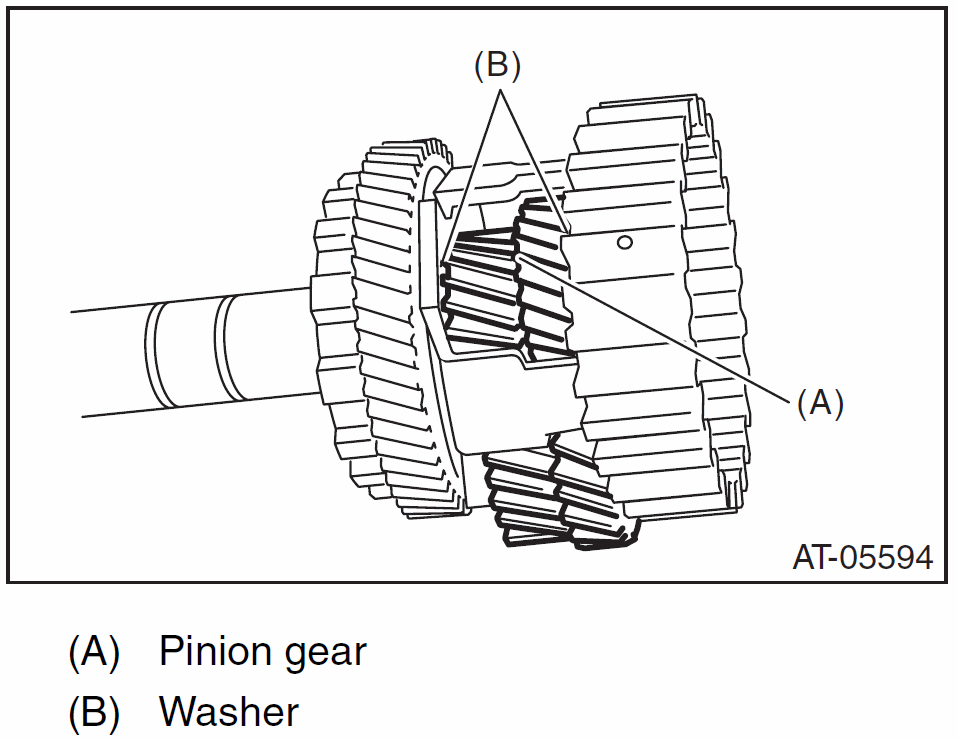

Fig 4: Identifying Pinion Gear And Washers
Courtesy of SUBARU OF AMERICA, INC.
Pull out the intermediate shaft and thrust bearing.
